Fiber Optic Tray Type PLC Splitter Tray Type 2x16 0.9mm Compact Design

Minimum Order Quantity : 1 piece Price : USD 10.98-11.48 per piece
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Supply Ability : 100,0000 pieces per months
Place of Origin: Guangdong , China Brand Name: Seacent
Certification: ISO9001, ROHS Model Number: 2x16 Tray Type

Detail Information

Product Name: Fiber Optic PLC Splitter Type: 2*16/2*32/2*64
Insertion Loss: 14.1 DB Return Loss: ≥55 DB
Connector: SC/APC Operating Temperature: -40°C - 85°C
High Light:

rack mounted plc

,

rack type plc

Product Description

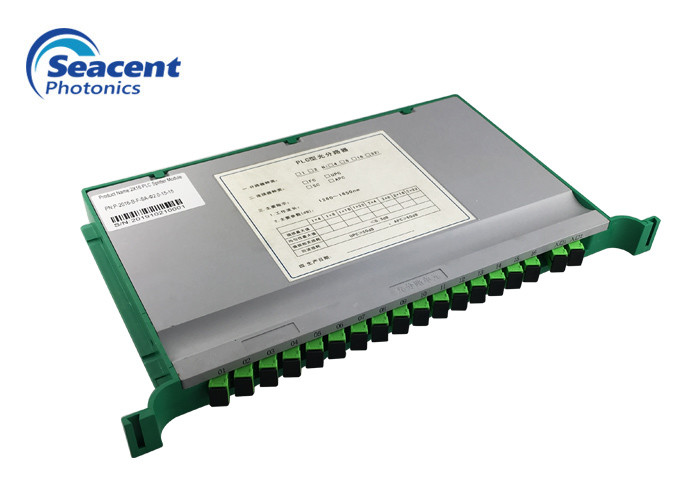

Fiber Optic PLC Splitter Tray type 2x16 0.9mm with SC/APC connector​



Seacent Photonics Fiber Optic PLC splitters are the best choice for large variety of telecom and sensor technology applications. Based on PLC (Planar Lightwave Circuit) technology, Seacent Photonics splitters optimally balance performance, size and cost.



Features:

  • Compact design
  • Low loss
  • Stable polarization
  • Reasonable fiber coiled structure ensures the fiber radius >40mm
  • The tray is made of high strength plastic, attractive and durable,compact and lightweight
  • High stability and reliability
  • Telcordia GR.1209 and GR.1221



Application:

  • FTTH
  • wired TV internet
  • Passive optical network (PON)
  • PON-FTTX network





Specifications:

Item Parameter

IL (dB)

14.1

Uniformity (dB)

≤1.5

Polarization dependent loss (dB)

≤0.3

RL (dB)

≥55

Directionality (dB)

≥55

Fiber length (m)

1.0 or customized

Working wavelength (nm)

1260-1650

Fiber type

G657A1 or customized

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature °C

-40℃- 85℃





Ordering information:

Product type

Inlet and exit diameter

Inlet and fiber length

 size

1XNor 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

2=0.9mm

0=0.5M

S=Customized

2x2

 to       345x195x25 mm

2x16



2x24

 to       345x195x50 mm

2x32



2x64     345x195x100 mm
