Multimode Duplex Fiber Optic Patch Cord Sc Lc 1m UPC For FTTX Network
Contact Person : Mike nie
Phone Number : 8613713851846
WhatsApp : +8613713851846
| Minimum Order Quantity : | 1 piece | Price : | USD 0.57~0.85 per piece |
|---|---|---|---|
| Supply Ability : | 150,000 pieces |
| Place of Origin: | Guangdong, China | Brand Name: | Seacent |
|---|---|---|---|
| Certification: | ISO9001,ROHS | Model Number: | Multimode Simplex |
|
Detail Information |
|||
| Item: | LC ST APC Patch Cord | Quality Control: | 100% Test Before Shipping |
|---|---|---|---|
| Fiber Type: | SM Or MM | Connector Type: | ST SC LC FC |
| Length: | Customized | Material: | PVC/LSZH |
| Polish: | UPC/APC | Application: | For ODF Internal Link,For Room Equipment Internal Link |
| High Light: | fiber optic cable patch cord,fiber optic jumper cables |
||
Product Description

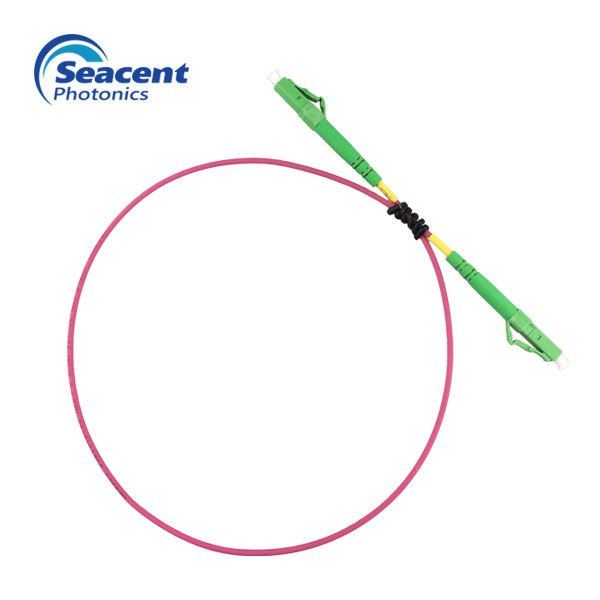

3.0mm LSZH Fiber Optic Patch Cord , Multimode Simplex LC LC APC Patch Cord
Description:
Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length
Fiber Optic Patch Cord is very important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch cord series comes with a comprehensive collection of lengths and connectors to meet your demand for the deployment.
Ordering information:
| Connector type | Casing color | Fiber type | Cable diameter | Fiber length | Cable type | Casing material |
|
1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST 8=Customized |
1=yellow 2=Orange 3=Aqua blue S=Customized |
1=SM9/125 G652D 2=SM9/125 G657A 3=MM50/125 OM3 4=MM62.5/125 OM1 S=Customized |
1=0.9mm 2=2.0mm 3=3.0mm |
0=0.5m 1=1.0m 2=1.5m 3=2.0m S=Customized |
1=Single core 2=Double core 3=waterproof 4=Branch 5=With fiber 6=Bundle |
1=PVC 2=LSZH 3=OFNR |
Technical parameter:
| FC,SC,LC | ST,MU | MTRJ | ||||||||||||||||||||
| SM | MM | SM | MM | SM | MM | |||||||||||||||||
| parameter | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | ||||||||||
| Working wavelength(nm) | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | ||||||||||||||||
| Fiber type | G657A1 or customed | |||||||||||||||||||||
| Insertion loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||||||||||
| Return loss(dB) | ≥55 | ≥60 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ||||||||||
| Repeatability(dB) | ≤0.1 | |||||||||||||||||||||
| Interchangeability(dB) | ≤0.2 | |||||||||||||||||||||
| Number of plugs(frequency) | ≥1000 | |||||||||||||||||||||
| Tensile strength (N) | ≥70 | |||||||||||||||||||||
| Durability (dB) | ≤0.2 | |||||||||||||||||||||
| Working temperature (°C) | -40℃- 85℃ | |||||||||||||||||||||
| Storage temperature (°C) | -40℃- 85℃ | |||||||||||||||||||||
Ferrule technical parameters:
| description | Single mode | Multi mode |
| length | (10.50±0.05)nm | (10.50±0.01)nm |
| Outer diameter | (2.4990±0.005)nm | (2.4990±0.001)nm |
| inside diameter | (0.125±0.001)nm | (0.126±0.129)nm |
| Concentricity | ≤1.0 | ≤4.0 |
Features:
Low insertion loss
High return loss
Good repeatability
Good interchange
Excellent environmental adaptability
Applications:
