17CH 150GHZ Athermal AWG WDM Wavelength Division Multiplexer High Uniformity

Minimum Order Quantity : 1 Delivery Time : 5-8 work days
Payment Terms : L/C, T/T
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: AAWG-17CH 150GHZ

Detail Information

Connector: LC/UPC,LC,ST,FC,SC Color: Black,Blue,Orange,White
Channel: 17CH,40CH,48CH,80CH,96CH Or Customized Product Name: Athermal Awg Dwdm Module
Warranty: 3 Years Application: Metro And Long Haul Network,FTTH FTTB FTTX Network,Telecommunication
High Light:

athermal awg

,

awg arrayed waveguide grating

Product Description

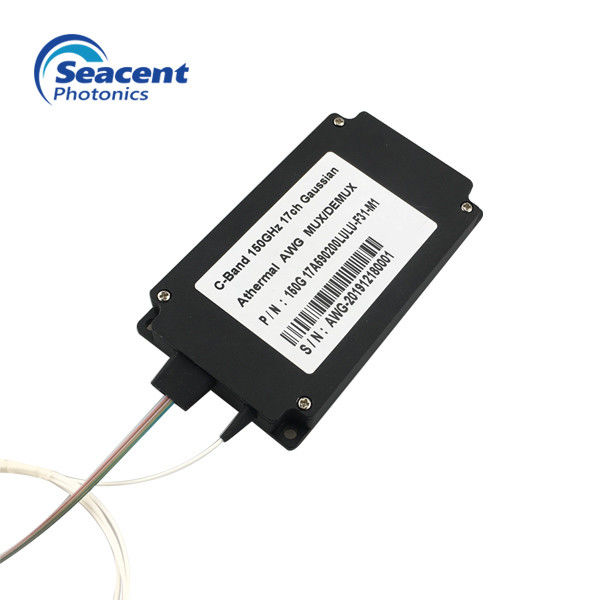

O band 17CH 150GHZ Athermal AWG Module Compact Size

Description:
This kind of Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 100GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths.

Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWGs offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package.

Our thermalization technology simplifies the deployment of AWG multiplexers/demultiplexers by DWDM network providers.

Features:
  • Flat-top Passband
  • Fully Passive Module
  • Low Crosstalk
  • High Uniformity
  • Low Insertion Loss & PDL
  • Wide wavelength range
  • 40 Channels x 100GHz Mux/Demux
  • Operating Temperature Range from -5ºC to 65ºC
  • No Electronics Required; Compact Footprint
  • Telcordia GR-1209/GR-1221 Qualified.

Application:
  • WDM based ADM
  • WDM transmission
  • Metro and long haul networks
  • Optical signal processing

Technical Parameters
Parameter Unit Value
Pass Band Type - Flat-top Gaussian
Channel Spacing GHz 100
Channel Number CH 48/40
Wavelength Accuracy nm ±0.05
1dB Pass Band nm ≥0.38 ≥0.2
3dB Pass Band nm ≥0.58 ≥0.4
Insertion Loss1 dB ≤6.0 Typ.4.5 ≤3.5 Typ.2.8
Ripple dB ≤0.5 ≤1.5
Uniformity dB ≤1.5 ≤1.5
Adjacent Crosstalk dB ≥23 ≥26
Non-adjacent Crosstalk dB ≥29 ≥35
Total Crosstalk dB ≥21
Polarization Dependent Loss(PDL) dB ≤0.5 Typ.0.25 ≤0.7 Typ.0.35
PMD2 ps ≤0.5
Chromatic Dispersion2 ps/nm ±20
Return Loss dB ≥40
Fiber Input Port mm Φ0.9
Output Ribbon - -
Fan Out mm Φ0.9
Operation Temperature -5~+65
Storage Temperature -40~+85
Package mm 120×70×11
Notes:
1. All specifications are based on the devices without connectors and guaranteed over wavelength, polarization, and temperature.
2. PMD and chromatic dispersion values are guaranteed by design.



Business advantage

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners



Technology:

(1) Professionally engaged in high-precision packaging production of optical devices for 15 years

(2) 15 years of technical team

(3) Have their own core technology



Research and development:

(1) Adhere to 5% of annual sales as technology research and innovation expenses

(2) Independent development chip



Market:

(1) Mainly in the middle and high-end market (Europe and America, Japan, South Korea, Southeast Asia, Russia)



Shipment:

(1) Logistics: Cooperate with well-known express delivery companies such as Korea ADC, Dongzhou, Hangxin, etc.

(2) Fast shipping: proofing 1-3 days, delivery time 15-20 days, can provide free stock samples, or free proofing.
