Athermal 17 Channels AWG DWDM MUX DEMUX

Minimum Order Quantity : 1 piece Price : Negotiation
Delivery Time : 5-8 work days Payment Terms : L/C, T/T
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: 80ch AWG

Detail Information

Fiber Type: 900um Loose Tube,Corning SMF-28e,Dual Fiber,SMF,Common G657A Fiber With 900mm Loose Tube Channels: 17CH,40CH,48CH,96CH Or Customized
Connector: LC/UPC,LC,ST,FC,SC Color: Black,Blue,Orange,White
High Light:

Athermal awg multiplexer

,

DWDM awg optical

Product Description

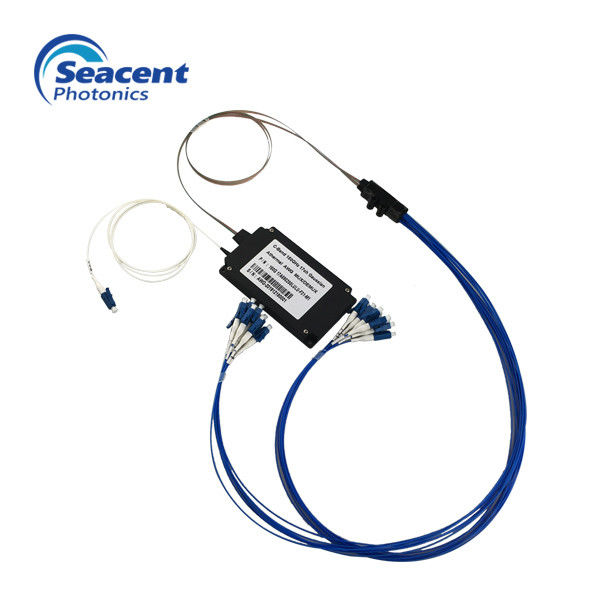

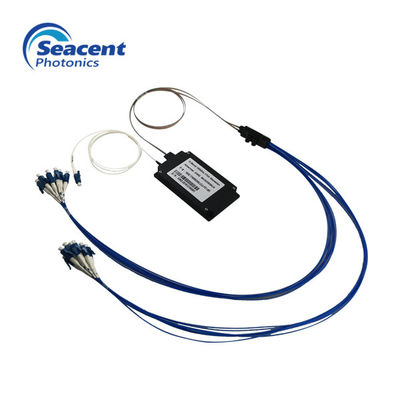

Athermal AWG DWDM MUX DEMUX 17 Channels



AWG MUX Description:

The Seacent Photonics Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM mux/demux device operating on 50GHz or 100GHz channel spacing in the C and L Band ITU grid. The PhotonIC™ planar-processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths.

AWG MUX Technical Parameters
Parameter unit Flat top Gaussian Flat top Gaussian
Number of channels   16/32/40/48 80/88/96
Channel spacing Ghz 50 50
Channel frequency Thz Blue band=1528.773~1547.316 C band=1526.827~1564.679
Red band=1545.720~1564.679
Wavelength accuracy nm ±0.05 ±0.05 ±0.05 ±0.05
1db bandwidth nm >0.18 >0.12 >0.18 >0.12
3db bandwidth nm >0.28 >0.20 >0.28 >0.20
Insertion loss (passband) dB <4.5 <3.7 <5.5 <4.5
Adjacent channel crosstalk dB >27 >27
Non-adjacent channel crosstalk dB >30 >30
Total crosstalk dB >24 >24
Insertion loss uniformity dB <1.2 <1.5
Polarization loss dB <0.5 <0.5 <0.5 <0.5
Return loss dB >40
Dispersion ps/nm ±10
Operating temperature ºC -20~70
Size (length * width * height) mm 120*70*12.3 130*90*11.3

Features:

  • Low Insertion Loss,Low PDL,High Channel Isolation
  • Mass production
  • Compact package
  • Dense wavelength division multiplexing system
  • Wide wavelength range
  • Realize upstream and downstream dual-frequency band by using single-chip microcomputer

AWG MUX Application:
  • Real-time line monitoring system
  • CATV, FTTH, ROADM, LAN, WAN system
  • Signal, network monitoring

Business advantage

Product:

(1) High reliability, high stability, small size, low insertion loss

(2) 1*N 2*N multiple channel forms

(3) 1260-1650nm full-band operation

(4) Industrial working environment: -40 ° C - + 85 ° C

(5) ISO9001-2015 quality system, Telcordia GR-1209-CORE, GR-1221-CORE standard certificate

(6) Customization: can be customized according to customer requirements

(7) Product process: industry leading



Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners
