High Reliability Optical Fiber Array 8 Channel With Wide Operation Temperature

Minimum Order Quantity : 10pcs Delivery Time : 5-8 work days
Payment Terms : L/C, T/T
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: Fiber Array-8CH

Detail Information

Color: Blue, Orange, Green, Brown, White, Red, Black, Yellow, Purple, Pink, Water Green Material: Quartz Glass, Borosilicate, Silicon
Polishing Angle ( ° ): 0,+8, -8 (±0.3) Connector Type: SC/FC/LC-APC/UPC,LC,ST,FC,TOSLINK
Packing: Inner Box And Export Carton,Polybag Application: ODF,fiber Distribution Box,FTTH Network,Telecommunication
High Light:

plc fiber array

,

fiber array

Product Description

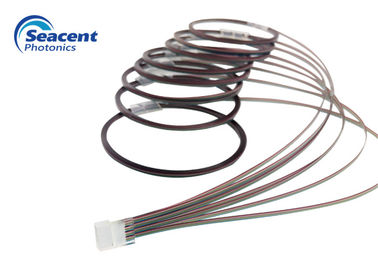

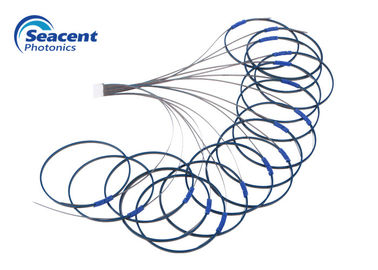

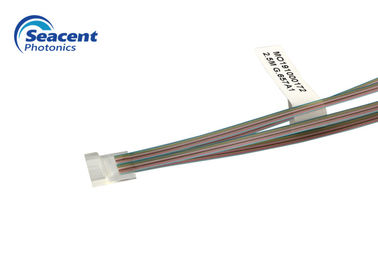

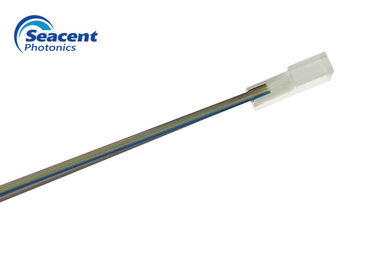

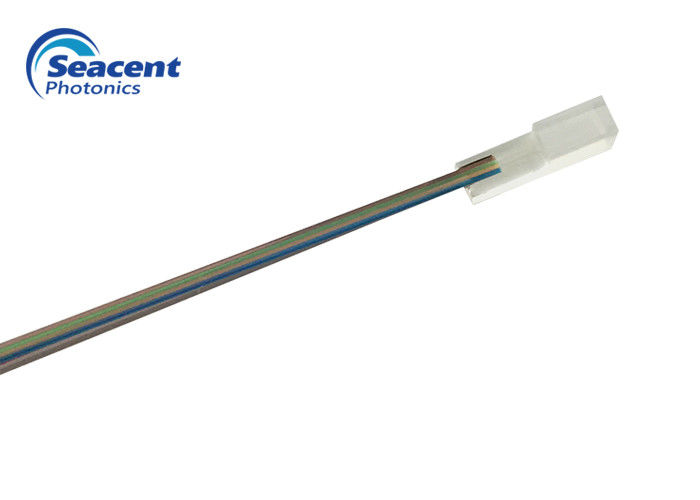

8 channel fiber array with 0 or 8 degrees angle

Description:

We offer high-quality fiber arrays that are made of quartz, pyrex or silicon material with flat or angular polished end face. These products feature high pitch accuracy, up to 64 channels, high reliability, and low cost. We also provide customized designs for your specific applications.



Features:

Low Insertion Loss

High Return Loss

Wide Operation Temperature

High Stability and Reliability

High accuracy of fiber core position



Applications:

PLC Devices

Splitters

AWG

Coupler

Active/passive array fiber optic device


Specification:
Item Parameter
Material Quartz glass, borosilicate, silicon
Number of channels 1CH ~ 128CH
Core distance/tolerance(μm) 250, 127 / 0.7
Fiber length (m) 2.0±0.1
Polishing angle ( ° ) 0,+8, -8 (±0.3)
Polishing flatness ﹤ 5 fringes@633nm
Fiber type SMF-28e or SMF-28e XB
Operating temperature(℃) -40~+85


V-groove base plate dimension table:

  L W H X Y comprehensive error
type size common difference size common difference size common difference size common difference core height difference R=√ x2+y2
2CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
4CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
8CH 250 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
8CH 127 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
16CH 127 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
32CH 127 10 ±0.3 5.7 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
48CH 127 12 ±0.3 7.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
64CH 127 12 ±0.3 9.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
96CH 127 12 ±0.3 16 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
128CH 127 12 ±0.3 20 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 0.1



Ordering Information:

Product number Fiber type Fiber length
01=1CH
02=2CH
03=4CH
04=8CH
05=12CH
06=16CH
07=24CH
08=32CH
09=48CH
10=64CH
11=96CH
12=128CH
1=G657A1
2= G657A2
3=G652D
4=G652B
0=0.5M
1=1.0M
2=1.5M
3=2.0M
4=2.5M
S=Customized
