AWG Mux
>
AWG Mux Module 40 Channel 100GHz For WDM Wavelength Division Systems

AWG Mux Module 40 Channel 100GHz For WDM Wavelength Division Systems

Brand Name: Seacent
Model Number: Thermal AWG-40CH 100GHZ
MOQ: 1 pcs
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong,China
Certification:
ISO9001,ROHS
Fiber Type:
900um Loose Tube,Corning SMF-28e,Dual Fiber,SMF,Common G657A Fiber With 900mm Loose Tube
Package:
19'' Rack Mount,Module/Rack,LGX,ABS,1U Rackmount
Warranty:
3 Years
Channels:
17CH,40CH,48CH,80CH,90CH Or Customized
Connector:
LC/UPC,LC,ST,FC,SC
Color:
Black,Blue,Orange,White
High Light:

awg multiplexer

,

awg optical

Product Description

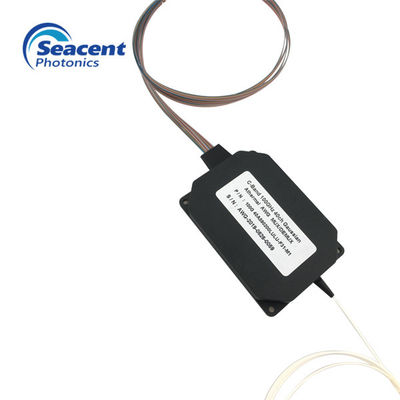

40Channel 100GHz Thermal Array Waveguide Grating (AWG)

Description:

Allows high-speed modulation of optical signals; Allows some offset in the wavelength of the light source; Insensitivity to the center wavelength offset due to temperature changes;
Allows a small wavelength offset due to polarization; Allows the system to connect multiple DWDM or filters in series Does not cause significant degradation in system performance.

AWG is to multiplex 40 optical signals with different wavelengths onto one optical fiber (multiplexing),
or separate 40 optical signals multiplexed in one optical fiber by wavelength (demultiplexing).
It adopts mature flat-top type thermal array waveguide grating technology and adopts a sealed technology package to ensure high environmental stability.


Features:
Stable performance: 1 + 1 dual power supply redundant backup, built-in temperature control circuit
Flexible and transparent access to multiple services: support 155M ~ 10G speed Ethernet, PDH, SDH, CATV and private network services
Accurate channel spacing

Application:
10 Gigabit Ethernet
Central computer room data transmission
Fibre Channel
Switch-to-switch connection
WDM wavelength division systems



Technical Parameters

Parameter 8 + 1 channels (combined) 8 + 1 channels (divided wave)
Center wavelength (nm) 1270~1610 or 1271~1611
Center wavelength accuracy (nm) ±0.5
Channel spacing (nm) 20
Passband width (nm) ±7.5
Insertion loss (dB) (Without jumper) ≤ 2.8
(With jumper) ≤2.0
Channel flatness (dB) ≤0.3
Isolation (dB) Adjacent ≥30
Non-adjacent ≥40
Upgrade side ≥12
Insertion loss thermal stability (dB / ℃) <0.005
Wavelength thermal stability (nm / ℃) <0.002
Polarization-dependent loss (dB) <0.1
Polarization Mode Dispersion (ps) <0.1
Directivity (dB) ≥50
Return loss (dB) ≥45
Maximum optical power (mW) 300
Working temperature (°C) -5~+75
Storage temperature (℃) -40~+85
Packing size (mm) L100 x W80x H10
