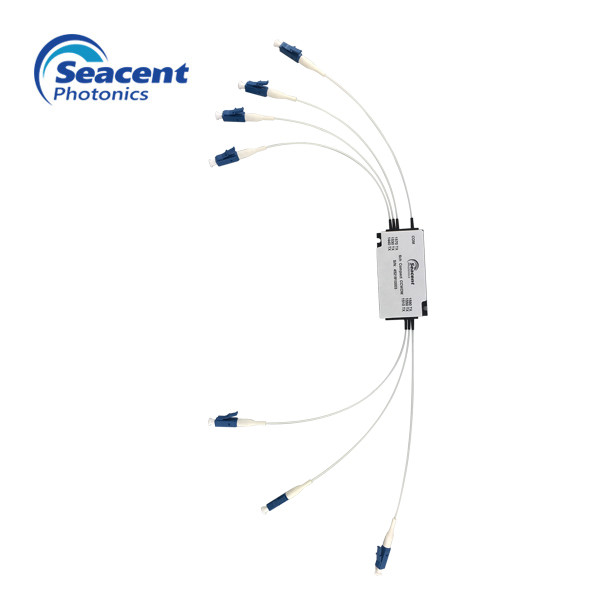

Telecommunications CCWDM Mux Demux

Product Details:
Place of Origin: Guangdong, China
Brand Name: Seacent
Certification: ISO9001,ROHS
Model Number: 4 Channel 8 Channel 18 Channel
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100,000 pieces per month

Detail Information

Name: CCWDM Mux Center Wavelength Accuracy: ±0.5 Nm
Waveband: 1270-1610 Nm Channel Bandwidth: ITU±6.5 Nm
Operating Temperature: -5~70 ℃ Connector Type: LC/APCOr Customer Specified
Package Size: 44x25x6 Mm Or Customer Specified Application: CWDM Networks
High Light:

ccwdm mux demux


4CH cwdm


Telecommunications CCWDM

Product Description

Telecommunications CCWDM Mux Demux Wide Operating Wavelength Range




Coarse Wavelength Division Multiplexing (CWDM) is an excellent choice for increasing bandwidth capacity while keeping costs down.


Seacent Photonics compact CWDM Modules feature free-space structure, high optical performance, small-sized package, and extremely low insertion loss. With these features, they dramatically relax the optical power budgets for your applications, allow datacom or telecom network applications to use low-cost uncooled lasers, and function in small-sized packages. Available from 4 to 18 channel configurations, the CCWDM can meet the expansion needs of any network. The module also simplifies inventory management since the same component serves as both a Mux and a Demux and can be used in the head end for outside plant. Compact and easy to install, the versatile compact CWDM module provides a simple and low-cost method for expanding bandwidth and increasing revenue from existing optical fiber.




Item 4CH 8CH 18CH
Center wavelength (nm) ITU or ITU+1(Customizable starting wavelength)
Product Features Mux or Demux or Mux&Demux
Channel wavelength (nm) 1270~1610
Center wavelength accuracy (nm) ±0.5
Channel pitch (nm) 20
Insertion loss (dB) ≤1.0 ≤1.5 ≤3.2
Channel uniformity (dB) ≤0.5 ≤0.5 ≤0.5
Isolation adjacent  (dB) >30 >30 >30
Isolation Non-adjacent  (dB) >45 >45 >45
Polarization-dependent loss (dB) <0.2
Polarization Mode Dispersion (PS) <0.1
Directivity (dB) >50
Return loss (dB) >45
Connector type LC/APC or customer specified
Maximum power (mW) 500
Working temperature (℃) -5~70
Storage temperature (℃) -40~85
Package  (mm) 44x25x6 or customer specified

Remark:The above parameters do not contain connectors.



  1. Low optical insertion loss
  2. Low Polarization Dependent Loss
  3. Small dimension
  4. Cost-effective CWDM technology
  5. Low-profile modular design
  6. High isolation
  7. Good channel-to-channel uniformity
  8. Wide operating wavelength range
  9. High reliability and high stability
  10. Telcordia GR-1209-CORE-2001 compliant
  11. Telcordia GR-1221-CORE-1999 compliant
  12. RoHS-6 compliant (lead free)



  1. CWDM Channels Add/Drop
  2. CWDM
  3. CATV Fiber Optical Links
  4. Accessing LAN Networks
  5. Short-Distance Communications

Business advantage


(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners
