| Brand Name: | Seacent |
| Model Number: | Simplex Multi Mode |
| MOQ: | 1 piece |
| Payment Terms: | L/C, T/T, D/P |

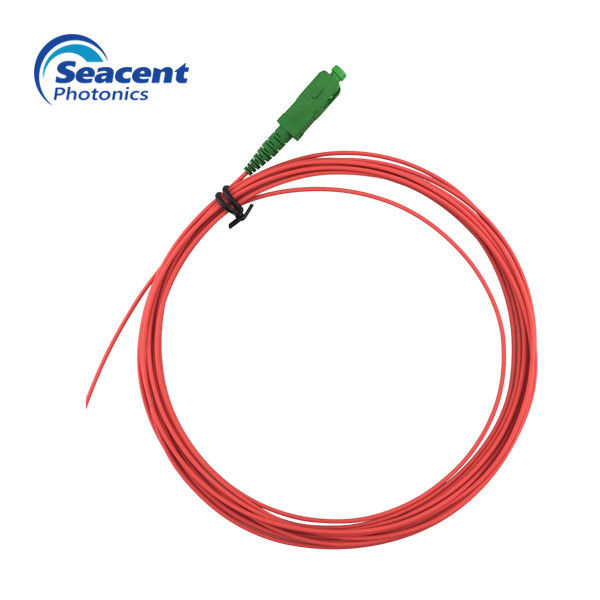

LSZH Fiber Optic Pigtail Simplex Multi Mode
Description:
Fiber Optic Pigtails are essential when terminating cables within the splice enclosures. Purchasing pre-polished assemblies reduces the risk of poor connector termination.
Apart from the standard versions, we can also make customized pigtails that meet your needs. From industry-standard 62.5/125µm multimode over 9/125 µm Single-mode right the way up to state-of-the-art OM3 50/125 µm cable assemblies, we can supply them all.
As a specialized multi-fiber patch cord producer and provider, Seacent Photonics offers various types of patch cable solutions. We are committed to offering high standard quality products at competitive prices and conduct rigorous quality controls on each manufacturing step. Seacent Photonics fiber optic cable meets RoHS and ISO9001 compliant, and all fiber patch cables connectors are 100% optically tested for insertion loss to ensure nice quality.
Features:
Appliaction:
Technical parameter:
|
FC,SC,LC |
ST,MU |
MTRJ |
||||||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
|||||||
|
UPC |
APC |
UPC |
APC |
UPC |
APC |
UPC |
APC |
UPC |
APC |
UPC |
APC |
|
|
Working wavelength(nm) |
1310,1550 |
850,1300 |
1310,1550 |
850,1300 |
1310,1550 |
850,1300 |
||||||
|
Fiber type |
G657A1 or customed |
|||||||||||
|
Insertion loss(dB) |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
|
Return loss(dB) |
≥55 |
≥60 |
≥35 |
≥35 |
≥50 |
≥50 |
≥35 |
≥35 |
≥50 |
≥50 |
≥35 |
≥35 |
|
Repeatability(dB) |
≤0.1 |
|||||||||||
|
Interchangeability(dB) |
≤0.2 |
|||||||||||
|
Number of plugs(frequency) |
≥1000 |
|||||||||||
|
Tensile strength (N) |
≥70 |
|||||||||||
|
Durability (dB) |
≤0.2 |
|||||||||||
|
Working temperature (°C) |
-40℃- 85℃ |
|||||||||||
|
Storage temperature(°C) |
-40℃- 85℃ |
|||||||||||
Ferrule technical parameters:
| description | Single mode | Multi mode |
| length | (10.50±0.05)nm | (10.50±0.01)nm |
| Outer diameter | (2.4990±0.005)nm | (2.4990±0.001)nm |
| inside diameter | (0.125±0.001)nm | (0.126±0.129)nm |
| Concentricity | ≤1.0 | ≤4.0 |
Ordering information:
| Connector type | Casing color | Fiber type | Cable diameter | Fiber length | Cable type | Casing material |
|
1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST 8=Customized |
1=yellow 2=Orange 3=Aqua blue S=Customized |
1=SM9/125 G652D 2=SM9/125 G657A 3=MM50/125 OM3 4=MM62.5/125 OM1 S=Customized |
1=0.9mm 2=2.0mm 3=3.0mm |
0=0.5m 1=1.0m 2=1.5m 3=2.0m S=Customized |
1=Single core 2=Double core 3=waterproof 4=Branch 5=With fiber 6=Bundle |
1=PVC 2=LSZH 3=OF |
How to choose correctly the cable jacket: PVC or LSZH ?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on. Whether you choose PVC or LSZH depends on where you're going to run the cable.
The features of PVC, LSZH are as follows:
Ø PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.
Ø LSZH cable has a special flam-retardant coating, it is between floors in a building.
|
|
