80km WDM Filter 1550nm

Minimum Order Quantity : 1 piece Delivery Time : 5-7 working days
Payment Terms : L/C, D/P, T/T Supply Ability : 50,000 pieces per month
Place of Origin: Guangdong, China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: filter type WDM

Detail Information

Transmission End Insertion Loss (dB): 0.8 (0.6 Typ.) Transmission End Isolation (dB): 30
Reflector Isolation (dB): 15 Flatness (dB): 0.3
Polarization Dependent Loss: 0.1 Return Loss: 45
Working Temperature (℃): -40~85 Storage Temperature (℃): -40~85
Package Specifications(mm) (Φ×L): Φ5.5*L34
High Light:

1550nm WDM Filter

,

fwdm splitter

,

80km WDM Filter

Product Description

 FWDM Splitter 1310 / 1490 / 1550nm 80km Distance ROHS Compliant





Description:

FTTX Filter WDM module is based on Thin Film Filter (TFF) technology.The device combines or separates light at different wavelengths in a wide wavelength range. They offer very low insertion loss, low polarization dependence, high isolation and excellent environmental stability.



Powerlink FTTH/FTTx 1310/1550nm FWDM Filter WDM can realize the multiplexing and de-multiplexing of communication optical signals of 1310nm and 1550nm. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.



GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed"



Specification:

Parameters



Working wavelength (nm)

T13/R15

T15/R13

T13/R1415

T14R1315

T15R1314

T1415R13

T1314R15

Transmission wavelength range (nm)

1310+/-40

1550+/-40

1310+/-40

1490+/-10

1550+/-10

1490+/-10&

1550+/-10

1310+/-40&

1490+/-10

Reflection wavelength range (nm)

1550+/-40

1310+/-40

1490+/-10&

1550+/-10

1310+/-40&

1550+/-10

1310+/-40&

1490+/-10

1310+/-40

1550+/-10

Transmission end insertion loss (dB)

0.8 (0.6 Typ.)

Reflective Insertion Loss (dB)

0.6 (0.4 Typ.)

Transmission end isolation (dB)

30

Reflector Isolation (dB)

15

Flatness (dB)

0.3

Polarization dependent loss

0.1

Polarization mode dispersion

0.1

Return loss

45

Directionality

50

Maximum withstand optical power (mw)

500

Working temperature (℃)

-40~85

Storage temperature (℃)

-40~85

Package specifications(mm) (Φ×L)

Φ5.5*L34

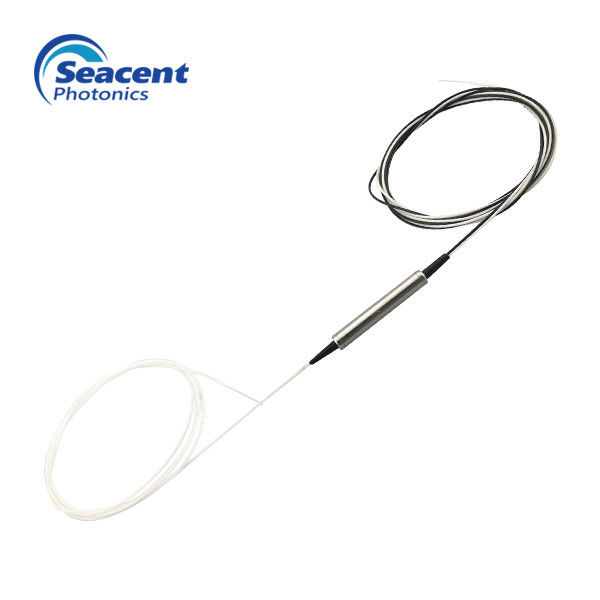

80km WDM Filter 1550nm 0



Features:

  • Low Insertion Loss
  • High Channel Isolation
  • Optical path epoxy free
  • Excellent thermal stability and reliability
  • High Isolation
  • RoHS Compliant



Applications:

  • ● CWDM and DWDM Network
  • Add/Drop System
  • CATV Fiberoptic System
  • Metro/Access Network
  • Fiber Optical Amplifier





Ordering inforamation:

LWD

-

XX

X

XX

X

XX

-

X

X

X



Port Configuration

WDM Type

Center Wavelength

Fiber Type

Output Fiber Length



COM Port Connector

Pass Port Connector

Reflection Port Connector

L-Lintegrity



01=1*1

F=FWDM

1=T13/R15

B=250um bare fiber

10=1.0m



0=None

0=None

0=None

W=WDM



02=1*2



2=T15/R13

L=900um loose tube

12=1.2m



1=FC/UPC

1=FC/UPC

1=FC/UPC

D=Device



3=T13/R1415

T=900um tight buffer

15=1.5m



2=FC/APC

2=FC/APC

2=FC/APC



4= T14R1315



……



3=SC/UPC

3=SC/UPC

3=SC/UPC



5= T15R1314



XX=Customized



4=SC/APC

4=SC/APC

4=SC/APC



6=T1415R13



5=LC/UPC

5=LC/UPC

5=LC/UPC



7=T1314R15



6=LC/APC

6=LC/APC

6=LC/APC



X= Customized

X= Customized

X=Customized
