Micro Type SC APC 1x2 Optical Splitter For Passive Optical Network
Contact Person : Mike nie
Phone Number : 8613713851846
WhatsApp : +8613713851846
| Minimum Order Quantity : | 1 piece | Packaging Details : | 200x135x20 mm |
|---|---|---|---|
| Delivery Time : | 5 work days | Payment Terms : | T/T, L/C, D/P |
| Supply Ability : | 100,000 pieces per month |
| Place of Origin: | Shenzhen, China | Brand Name: | Seacent |
|---|---|---|---|
| Certification: | ISO9001,ROHS | Model Number: | 1x8 |
|
Detail Information |
|||
| Insetion Loss: | ≤10.2 DB | Return Loss: | ≥55 DB |
|---|---|---|---|
| PDL: | ≤0.2 DB | Working Temperature: | -40℃- 85℃ |
| Fiber Length (m): | 1.0or Customized | Temperature Stability (dB): | -40℃--85℃(≤0.5) |
| High Light: | plc fiber splitter,bare plc splitter |
||
Product Description

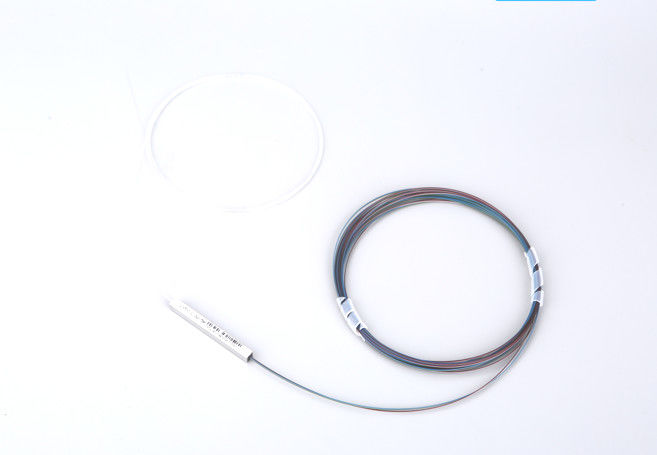

Fiber Optic PLC Splitter bare device 1x8 mini tube G657A1 in FTTH
The PLC splitter (also called Planar Waveguide Circuit splitter) is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal. Fiber PLC splitter provides a low cost light distribution solution with high stability and reliability. PLC splitters can offer a splitting ratio up to 1x64, which is generally higher than the splits of FBT splitter.
|
Item |
Parameter |
| Insertion loss (dB) | 10.2 |
| Polarization dependent loss (dB) | ≤0.25 |
| Uniformity (dB) | ≤0.8 |
| Return loss (dB) | ≥55 |
| Directionality (dB) | ≥55 |
| Fiber length (m) | 1.0or customized |
| Temperature stability (dB) | -40℃--85℃(≤0.5) |
| Working temperature °C | -40℃--85℃ |
| Storage temperature °C | -40℃--85℃ |
| Fiber type | G657A1 or customized |
| Working wavelength (nm) | 1260-1650 |
Features:
Low loss and stable polarization
Compact design
Good channel uniformity
High stability and reliability
Certified by Telcordia GR.1209 and GR.1221
In line with ROHS standards
Application :
Fiber to the home
Passive optical network
Cable TV network
PON-FTTX network
Package:
Ordering Information:
|
Product type |
Fiber diameter | Inlet and fiber length |
Package size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0148=1X48 0164=1X64 1128=1X128 |
1=250um 2=900um |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
1x2 4x4x40 mm to or 1x8 4x5x40 mm
1x12 to 4x7x60 mm 1x32
1x48 to 4x12x60 mm 1x64 1x128 6x20x80 mm |
