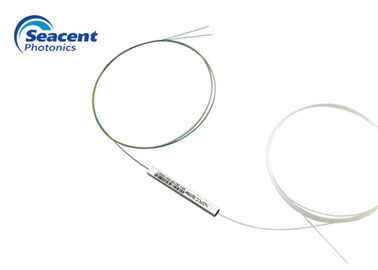

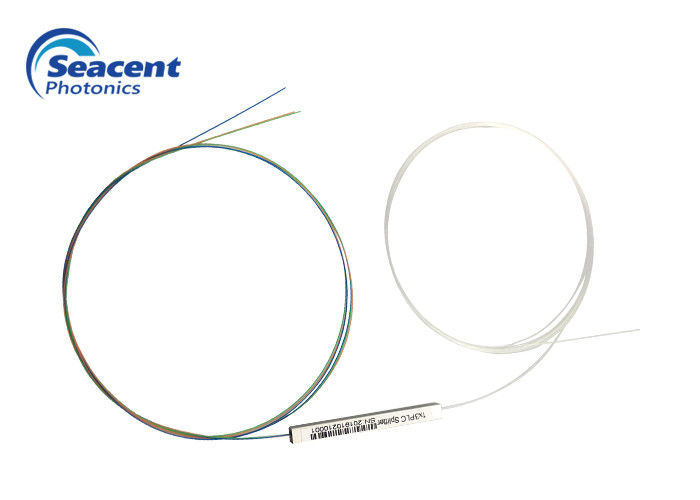

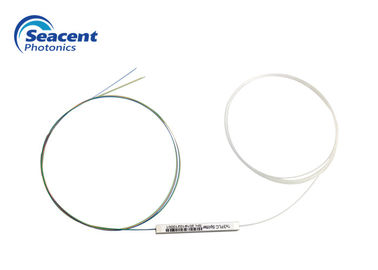

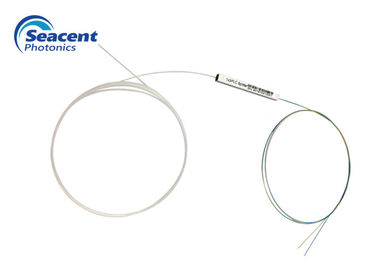

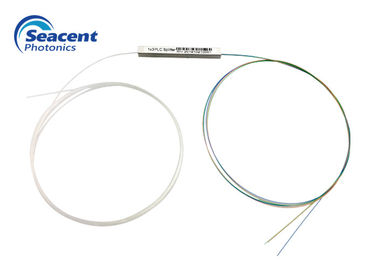

1x3 Bare Fiber Optic PLC Splitter Customized Length Good Channel Uniformity

Minimum Order Quantity : 1 piece Price : USD 3.99-4.99 per piece
Delivery Time : 5 work days Payment Terms : L/C, T/T
Supply Ability : 100,000 pieces per month
Place of Origin: Shenzhen,China Brand Name: Seacent
Certification: ISO9001 , ROHS Model Number: 1x3 type bare device

Detail Information

Product Name: PLC Splitter Bare Device Fiber Type: G657A1 Or Customized
Return Loss: ≥55 DB Insertion Loss: ≤6.1 DB
Fiber Length: 1m Customized Uniformity: ≤0.5 DB
High Light:

plc fiber splitter

,

bare plc splitter

Product Description

Fiber Optic PLC Splitter 1x3 bare fiber 1m length customized

PLC Splitter also named Planar lightwave circuit splitter, is a quartz-based integrated waveguide optical power distribution device with small size. It is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.



Product Features:

  • Low loss and stable polarization

  • Optical performance 100% factory tested
  • High stability and reliability
  • Good channel uniformity
  • Certified by Telcordia GR.1209 and GR.1221



Applications:

  • LAN, WAN & Metro Networks
  • FTTH
  • Passive Optical Networks
  • PON-FTTX network
  • wired TV internet

Specifications:



Item Parameters

IL

6.1 dB

Uniformity

≤0.5 dB

PDL

≤0.25 dB

RL

≥55 dB

Directionality

≥55 dB

Fiber length

1.0m or customized

Working wavelength

1260-1650 nm

Temperature stability

-40℃- 85℃ (≤0.5 dB)

Working temperature

-40℃- 85℃

Maximum power

1000 nW







Ordering Information:



Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2         4x4x40 mm

 to           or

1x8         4x5x40 mm



1x12

 to            4x7x60 mm

1x32



1x48

 to             4x12x60 mm

1x64



1x128      6x20x80 mm
