Micro Type SC APC 1x2 Optical Splitter For Passive Optical Network
Contact Person : Mike nie
Phone Number : 8613713851846
WhatsApp : +8613713851846
| Minimum Order Quantity : | 1 piece | Delivery Time : | 5-8 work days |
|---|---|---|---|
| Payment Terms : | L/C, T/T, D/P | Supply Ability : | 100,000 pieces per month |
| Place of Origin: | Shenzhen,China | Brand Name: | Seacent |
|---|---|---|---|
| Certification: | ISO9001 , ROHS | Model Number: | 1x6 bare fiber |
|
Detail Information |
|||
| Product Name: | Fiber Optic PLC Splitter | Type: | 1*2/1*4/1*8/1*16/1*32/1*64 |
|---|---|---|---|
| Application: | FTTH FTTB FTTX PON CATV | IL: | 9.0 DB |
| Operating Temperature: | -40℃ To 85℃ | RL: | ≥55 DB |
| High Light: | optical plc splitter,plc fiber splitter |
||
Product Description

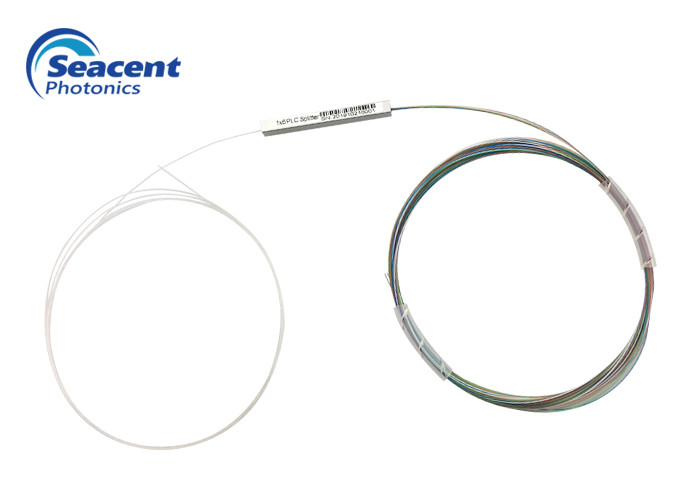

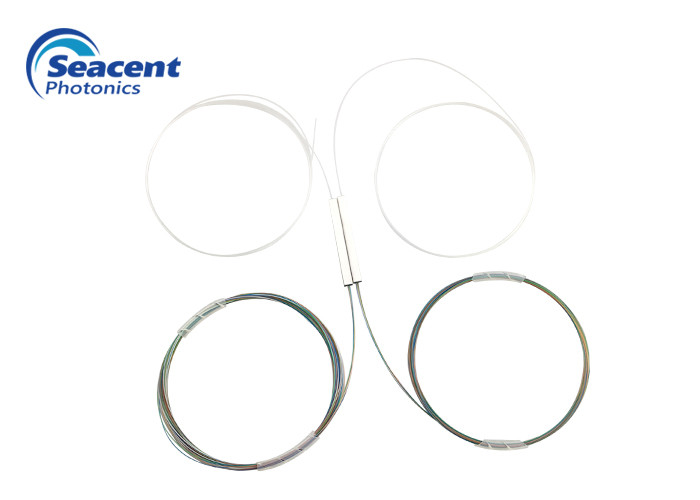

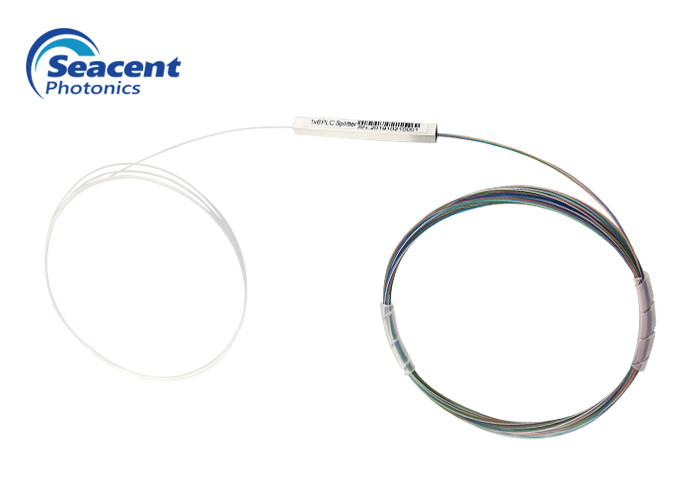

Fiber Optic PLC Splitter 1x6 bare fiber G657A1 customized in optic network
Fiber optic PLC splitter is an essential passive component in Fiber to the Home network.The full name of PLC Splitter is Planar Lightwave Circuit Splitter. It adopts silica optical waveguide technology and is used for optical power allocation from the central office to customer premises in FTTx and FTTH networks.PLC Splitter offers a cost-effective and space-saving networking solution in an optical transmission system.
Bare Fiber PLC Splitters are not terminated with fiber optic connectors and could be spliced with optical fibers in distribution cables and drop cables. Bare Fiber PLC Splitters are widely used for FTTH Passive Optical Network as passive optical splitters, including EPON (as EPON Splitter) and GPON (as GPON Splitter).
PLC Splitters are available in a variety of port configurations, including 1×2 PLC Splitter, 1×4 PLC Splitter, 1×8 PLC Splitter, 1×16 PLC Splitter, 1×32 PLC Splitter, 1×64 PLC Splitter, 1x128 PLC Splitter etc.
Applications:
Product Features:
Specificatrion:
| Item | Parameters |
|
IL (dB) |
≤9.0 |
|
Uniformity (dB) |
≤0.6 |
|
Polarization dependent loss (dB) |
≤0.25 |
|
RL (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Fiber type |
G657A1 or customized |
| Temperature stability (dB) | -40℃--85℃(≤0.5) |
|
Working temperature °C |
-40℃--85℃ |
|
Storage temperature °C |
-40℃--85℃ |
|
Maximum power (nW) |
1000 |
Ordering Information:
|
Product type |
Fiber diameter |
Inlet and fiber length |
Package size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0148=1X48 0164=1X64 1128=1X128 |
1=250um 2=900um |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
1x2 4x4x40 mm to or 1x8 4x5x40 mm
1x12 to 4x7x60 mm 1x32
1x48 to 4x12x60 mm 1x64
1x128 6x20x80 mm |
