| Brand Name: | Seacent |
| Model Number: | Fiber Array-2CH |
| MOQ: | 10pcs |
| Payment Terms: | L/C, T/T |

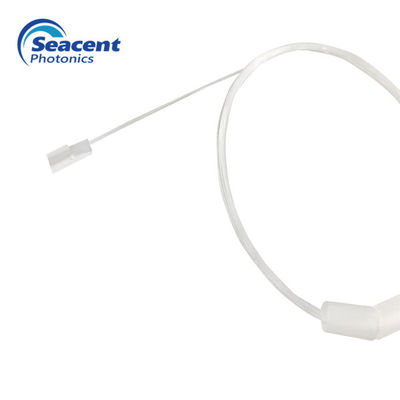

Fiber array 2CH plasitc material 12 colors Quartz glass, borosilicate, silicon material
Description:
Fiber Array (FA) uses a V-groove (V-Groove) to mount an optical fiber, a bundle of fibers, or a ribbon on an array substrate.
The fiber array is a bare fiber that removes the fiber coating. A portion is placed in the V-groove and is pressurized by the adhesive by the pressurization member. At the front end, the fiber is precisely positioned to connect to the PLC splitter or AAWG.
Features:
Low insertion loss
High stability and reliability
Good channel uniformity
High precision core spacing
Meet ROHS standards
Applications:
Active/passive array fiber optic device
Arrayed waveguide grating
Planar optical waveguide
Multi-channel optical module
Specifications:
| Item | Parameter |
| Material | Quartz glass, borosilicate, silicon |
| Number of channels | 1CH ~ 128CH |
| Core distance/tolerance(μm) | 250, 127 / 0.7 |
| Fiber length (m) | 2.0±0.1 |
| Polishing angle ( ° ) | 0,+8, -8 (±0.3) |
| Polishing flatness | ﹤ 5 fringes@633nm |
| Fiber type | SMF-28e or SMF-28e XB |
| Operating temperature(℃) | -40~+85 |
V-groove base plate dimension table:
| L | W | H | X | Y | comprehensive error | ||||||
| type | size | common difference | size | common difference | size | common difference | size | common difference | core height difference | R=√ x2+y2 | |
| 2CH 250 | 10 | ±0.3 | 2.5 | ±0.05 | 2.5 | ±0.05 | 0.25 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 4CH 250 | 10 | ±0.3 | 2.5 | ±0.05 | 2.5 | ±0.05 | 0.25 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 8CH 250 | 10 | ±0.3 | 3.5 | ±0.05 | 2.5 | ±0.05 | 0.25 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 8CH 127 | 10 | ±0.3 | 2.5 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 16CH 127 | 10 | ±0.3 | 3.5 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 32CH 127 | 10 | ±0.3 | 5.7 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 48CH 127 | 12 | ±0.3 | 7.8 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 64CH 127 | 12 | ±0.3 | 9.8 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 96CH 127 | 12 | ±0.3 | 16 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 128CH 127 | 12 | ±0.3 | 20 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
Ordering Information:
|
Product number |
Fiber type |
Fiber length |
|
01=1CH 02=2CH 03=4CH 04=8CH 05=12CH 06=16CH 07=24CH 08=32CH 09=48CH 10=64CH 11=96CH 12=128CH |
1=G657A1 2=G657A 3=G652D 4=G652B |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
|
|
