Fiber Optic PLC Splitter
>

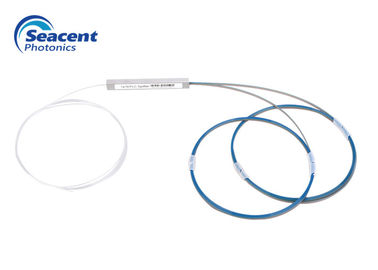

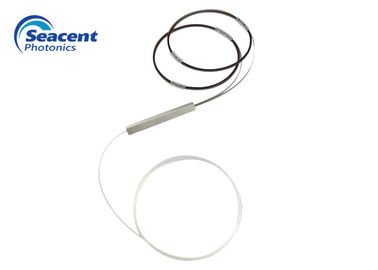

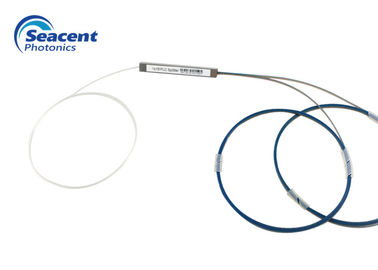

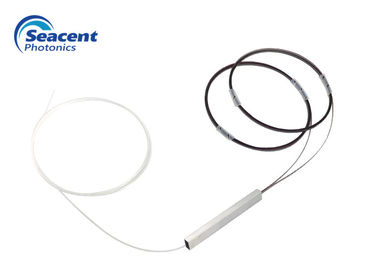

ISO9001 Approved Fiber Optic PLC Splitter , Bare Device 1x16 Optical Splitter

ISO9001 Approved Fiber Optic PLC Splitter , Bare Device 1x16 Optical Splitter

Brand Name: Seacent
Model Number: 1x16 type bare device
MOQ: 1 piece
Payment Terms: L/C, T/T, D/P
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
Shenzhen,China
Certification:
ISO9001 , ROHS
Product Name:
PLC Splitter Bare Device
Insertion Loss:
≤13.5 DB
Return Loss:
≥55 DB
PDL:
≤0.3 DB
Temperature Uniformity:
≤1.0 DB
Working Temperature:
-40℃--85℃
Supply Ability:
100,000 pieces per month
High Light:

optical plc splitter

,

bare plc splitter

Product Description

Fiber Optic PLC Splitter 1x16 bare fiber type in optical network

Fiber Optic PLC Splitter Specification:

Seacent Photonics Fiber Optic PLC Splitter is designed for long-term reliability, superior performance, and a wide range of uses in optic network , including optical transmission, long haul, subscriber loop, and fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network. We provide 7 types of high-quality splitters , including bare fiber, micro type, ABS box, FTTH insert type ,Tray type Brancher and rack mount. Our optical splitters are designed for consistent performance, low optical loss, low polarization sensitivity, superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks.



Fiber Optic PLC Splitter Features:

  • Low insertion loss
  • Stable polarization
  • Optical performance 100% factory tested
  • High stability and reliability
  • Excellent uniformity
  • Certified by Telcordia GR.1209 and GR.1221



Fiber Optic PLC Splitter Applications:

  • LAN, WAN
  • Metro Networks
  • FTTH
  • Test equipment
  • Passive Optical Networks
  • PON-FTTX network

Fiber Optic PLC Splitter Parameters:

Item Parameters

Insetion Loss

13.5 dB

Uniformity

≤1.0 dB

PDL

≤0.3 dB

Return Loss

≥55 dB

Directionality

≥55 dB

Length

1.0m or customized

Wavelength

1260-1650 nm

Stability

≤0.5 dB (-40℃- 85℃)

Working temperature

-40℃- 85℃

Maximum power

1000 nW



Ordering Information:

Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2         4x4x40 mm
 to           or
1x8         4x5x40 mm

1x12
 to            4x7x60 mm
1x32

1x48
 to             4x12x60 mm
1x64

1x128      6x20x80 mm
