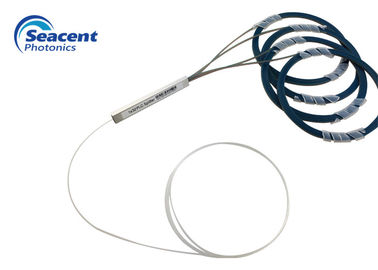

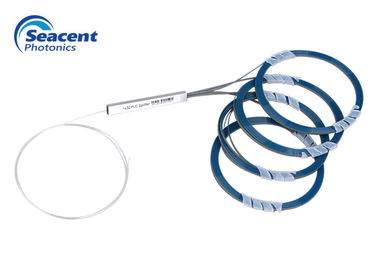

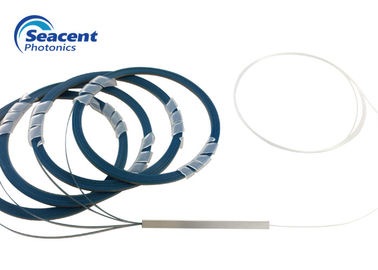

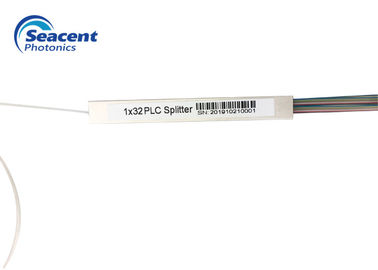

Bare Device Plc Fiber Optic Splitter , 1x32 Plc Splitter Low Insertion Loss

Minimum Order Quantity : 1 piece Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, D/P Supply Ability : 100,000 pieces per month
Place of Origin: Shenzhen,China Brand Name: Seacent
Certification: ISO9001 , ROHS Model Number: 1x32 type bare device

Detail Information

Product Name: PLC Splitter Bare Fiber IL: ≤16.8 DB
RL: ≥55 DB PDL: ≤0.3 DB
Temperature Uniformity: ≤1.5 DB Working Temperature: -40℃--85℃
High Light:

plc fiber splitter

,

bare plc splitter

Product Description

Fiber Optic PLC Splitter 1x32 bare fiber customized in optical network

Seacent Photonics optical splitters are designed for consistent performance, low optical loss, low polarization sensitivity, superior environmental and mechanical characteristics, and fast installation. Our PLC Splitter is designed for long-term reliability, superior performance, and a wide range of uses in optic network , including optical transmissi on, long haul, subscriber loop, and fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network. We provide 7 types of high-quality splitters , including bare fiber, micro type, ABS box, FTTH insert type ,Tray type Brancher and rack mount. They also enable more effective monitoring and management of fiber optical networks.



Product Features:

  • fiber optical networks.

  • Low insertion loss

  • Optical performance 100% factory tested

  • High stability and reliability

  • Certified by Telcordia GR.1209 and GR.1221



Applications:

  • LAN,WAN
  • Metro Networks
  • FTTH
  • Passive optical networks



Specifications:



Item Parameters

Insetion Loss

≤16.8 dB

Uniformity

≤1.5 dB

PDL

≤0.3 dB

Return Loss

≥55 dB

Directionality

≥55 dB

Length

1.0m or customized

Wavelength

1260-1650 nm

Stability

≤0.5 dB (-40℃- 85℃)

Working temperature

-40℃- 85℃

Maximum power

1000 nW



Ordering Information:


Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2         4x4x40 mm
 to           or
1x8         4x5x40 mm

1x12
 to            4x7x60 mm
1x32

1x48
 to             4x12x60 mm
1x64

1x128      6x20x80 mm
