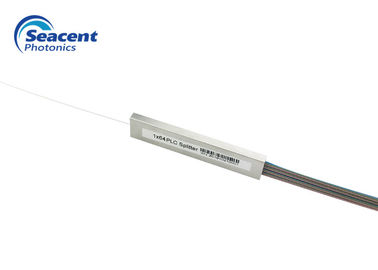

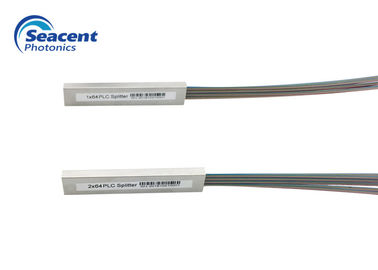

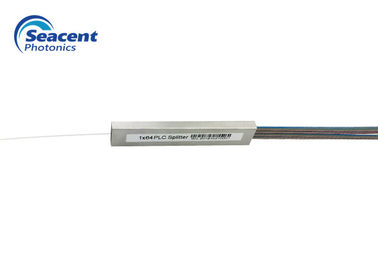

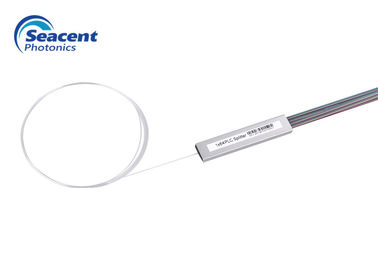

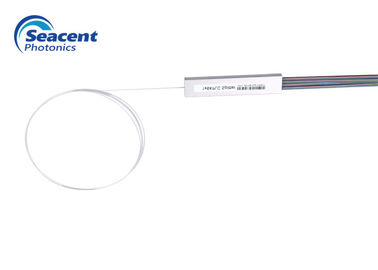

1x64 Bare Fiber Optical Plc Splitter Low Insertion Loss With Even Ratior

Minimum Order Quantity : 1 piece Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, D/P Supply Ability : 100,000 pieces per month
Place of Origin: Shenzhen,China Brand Name: Seacent
Certification: ISO9001 , ROHS Model Number: 1x64 bare fiber

Detail Information

Product Name: Fiber Optic PLC Splitter Ratior: 1*2/1*4/1*8/1*16/1*32/1*64/1*128
Application: FTTB FTTX FTTH PON CATV IL: ≤20.1 DB
RL: ≥55 DB Operating Temperature: -40℃ To 85℃
High Light:

plc fiber splitter

,

bare plc splitter

Product Description

Fiber Optic PLC Splitter 1x64 bare fiber G657A1 customized with even ratior


1×64 Bare Fiber PLC Splitter, Singlemode, 250μm Fiber, No Connector

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.



Applications:

  • WAN , LAN CATV& Metro Networks
  • Telecommunication Networks
  • FTTH,FTTX,FTTB
  • Passive Optical Networks
  • Value Added Module

Product Features:

  • Compact design
  • Optical performance 100% factory tested
  • High stability
  • Low Insertion Loss,
  • Back Reflection and PDL
  • Certified by Telcordia GR.1209 and GR.1221



Specificatrion:



Item Parameters

IL  (dB)

20.1

Uniformity  (dB)

≤1.8

Polarization dependent loss  (dB)

≤0.35

RL (dB)

≥55

Fiber length  (m)

1.0 or customized

Fiber type

G657A1 or customized

Temperature stability  (dB) -40℃--85℃(≤0.5)

Working temperature  °C

-40℃--85℃

Storage temperature  °C

-40℃--85℃

Maximum power (nW)

1000




Ordering Information:


Product type

  Fiber diameter

    Inlet and fiber length

Package

size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

   1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2        4x4x40 mm
  to         or
1x8        4x5x40 mm

1x12
  to         4x7x60 mm
1x32

1x48
  to         4x12x60 mm
1x64

1x128     6x20x80 mm
