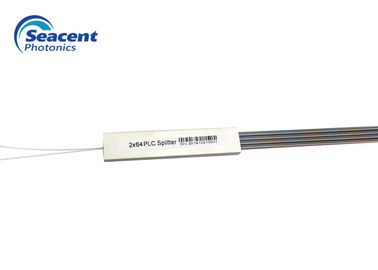

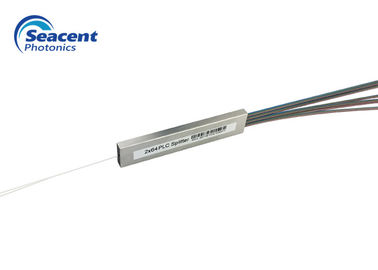

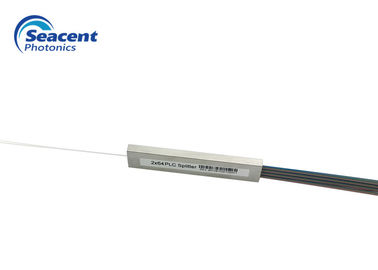

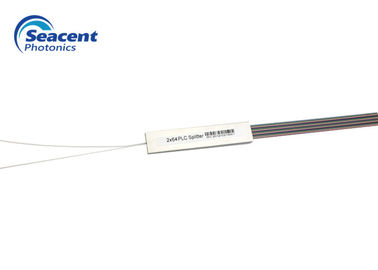

2x64 Fiber Optic PLC Splitter Bare Device Low Polarization Dependent Loss

Brand Name:	Seacent
Model Number:	2x64 type bare device
MOQ:	1 piece
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

ISO9001 , ROHS

Product Name:

PLC Splitter Bare Device

Application:

Optical Network

≤ 20.4 DB

Length Type:

1m/2m/3m Customized

Fiber Type:

G657A1 Or Customized

Supply Ability:

100,000 pieces per month

Highlight:

plc fiber splitter

bare plc splitter

Product Description

Fiber Optic PLC Splitter bare fiber 2x64 type with even ratior

Seacent Photonics offers high optical performance bare fiber PLC Splitter,Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.

Product Features:

Low insertion loss
Stable polarization and good uniformity
Low Polarization Dependent Loss
High stability and reliability
Certified by Telcordia GR.1209 and GR.1221

Applications:

LAN, WAN & Metro Networks
Fiber to the home
Optical system
PON-FTTX network
TV internet

Specifications:

Item	Parameters
IL (dB)	≤20.4
Uniformity (dB)	≤2.0
PDL(dB)	≤0.35
RL (dB)	≥55
Directionality (dB)	≥55
Fiber length (m)	customized
Working wavelength (nm)	1260-1650
Temperature stability (dB)	-40℃- 85℃(≤0.5)
Working temperature °C	-40℃- 85℃
Maximum power (nW)	1000

Ordering Information:

Product type

Fiber diameter

Inlet and fiber length

Package size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0148=1X48

0164=1X64

1128=1X128

1=250um

2=900um

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2 4x4x40 mm

to or

1x8 4x5x40 mm

1x12

to 4x7x60 mm

1x32

1x48

to 4x12x60 mm

1x64

1x128 6x20x80 mm
