| Brand Name: | Seacent |
| Model Number: | 1X2 ABS Box |
| MOQ: | 1 piece |
| Price: | USD 2.48-4.29 per piece |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100,000 pieces per month |

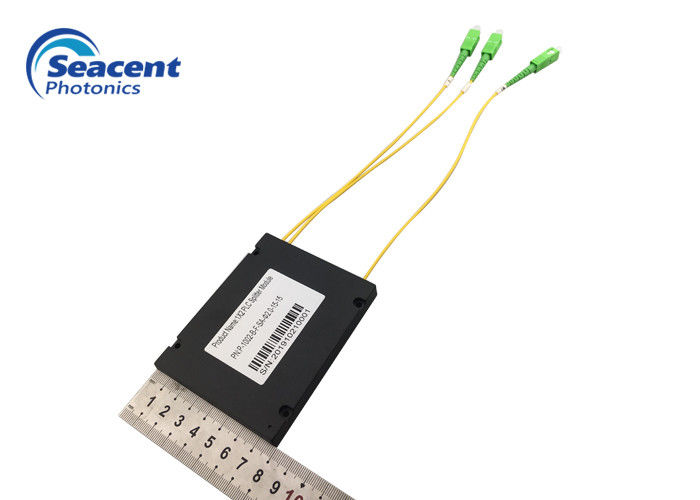

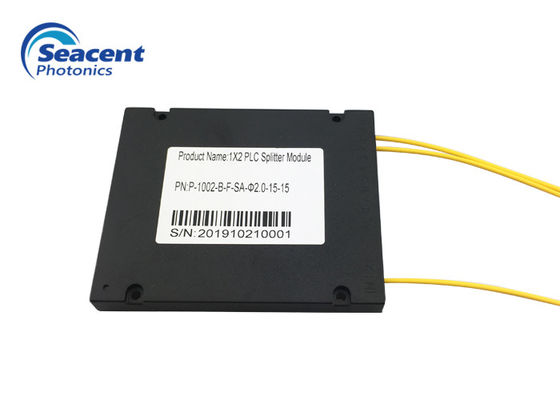

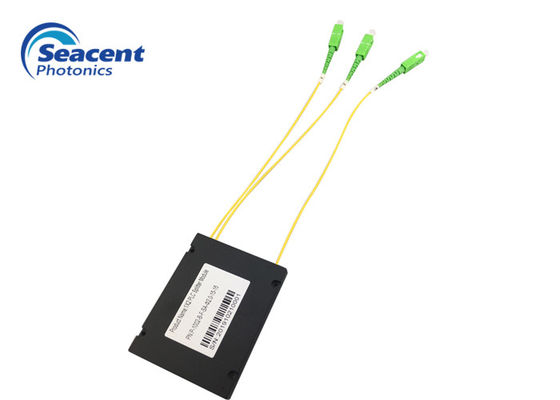

Fiber Optic PLC Splitter 1X2 ABS Box 2.00mm with SC/APC Connector
Seacent Photinics offers ABS box PLC splitter with all kinds of ratios, including 1xN type and 2xN type. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. Customized designs are also available for customer needs, call or e-mail us about anything you need that you don't see here.
The Seacent Photonics PLC splitters are tailored for specific applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or e-mail us about anything you need that you don't see here.
Features:
Application:
Specifications:
| Item | Parameter |
|
Insertion loss (dB) |
3.9 |
|
Uniformity (dB) |
≤0.4 |
|
Polarization dependent loss (dB) |
≤0.25 |
|
Return loss (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber type |
G657A1 or customized |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Ordering information:
|
product type |
Inlet and exit diameter |
Inlet and fiber length |
ABS box size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=2.0mm 3=3.0mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=customized |
1x2 100x45x10 mm to or 1x8 100x80x10 mm
1x12 100x80x10 mm to or 1x32 120x80x18 mm
1x64 to 141x115x18 mm 1x128
|
|
|
