| Brand Name: | Seacent |
| Model Number: | 2X2 ABS Module |
| MOQ: | 1 piece |
| Price: | USD 4.3-6.38 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

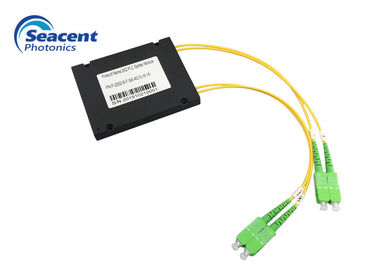

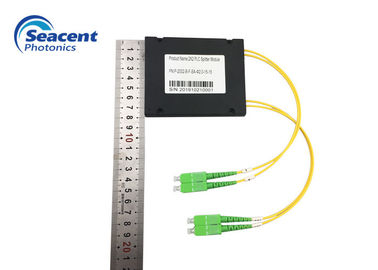

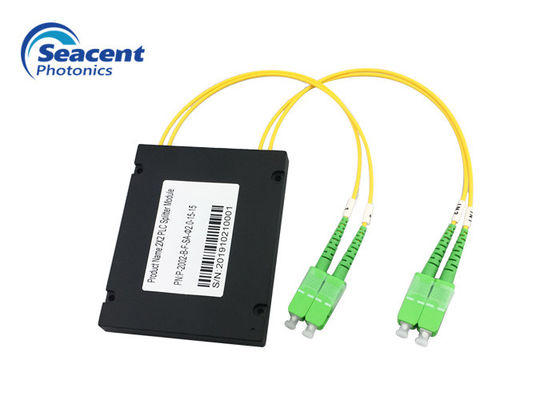

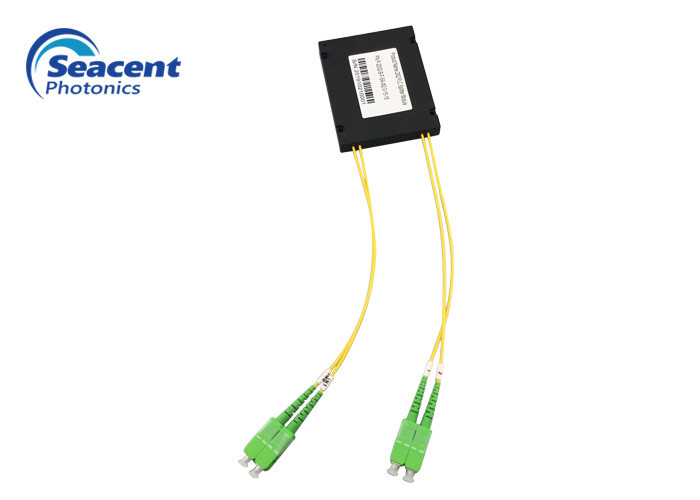

Fiber Optic PLC Splitter 2X2 ABS Module 2.00mm with SC/APC Connector
Seacent Photonics offers a variety of Planar lightwave circuit (PLC) splitters, PLC splitter is an optical power management device that fabricated using silica optical waveguide technology to distribute optical signals from the Central Office (CO) to multiple premise locations.
ABS Box PLC splitters are widely used in the PON networks. They provide complete protection for inner optical components and cable, and are designed for convenient and reliable installations.
With high volume usage, the PLC splitters are mainly used for various connection and distribution products (outdoor fiber distribution boxes) or network cabinets. Ideal for EPON, GPON, FTTH/FTTX networks
Features:
Application:
Specifications:
| Item | Parameter |
|
IL(dB) |
4.2 |
|
Uniformity (dB) |
≤0.8 |
|
Polarization dependent loss (dB) |
≤0.25 |
|
RL(dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber type |
G657A1 or customized |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Ordering information:
|
product type |
Inlet and exit diameter |
Inlet and fiber length |
ABS box size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=2.0mm 3=3.0mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=customized |
2x2 100x45x10 mm to or 2x8 100x80x10 mm
2x12 100x80x10 mm to or 2x32 120x80x18 mm
2x64 to 141x115x18 mm 2x128
|
|
|
