Cassette PLC Splitter
>

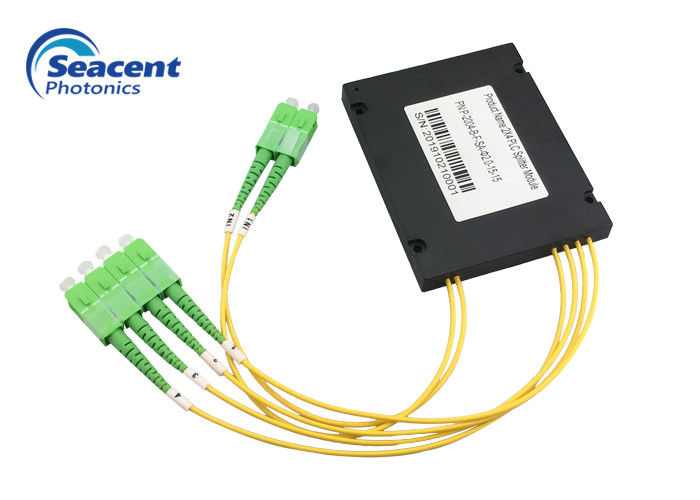

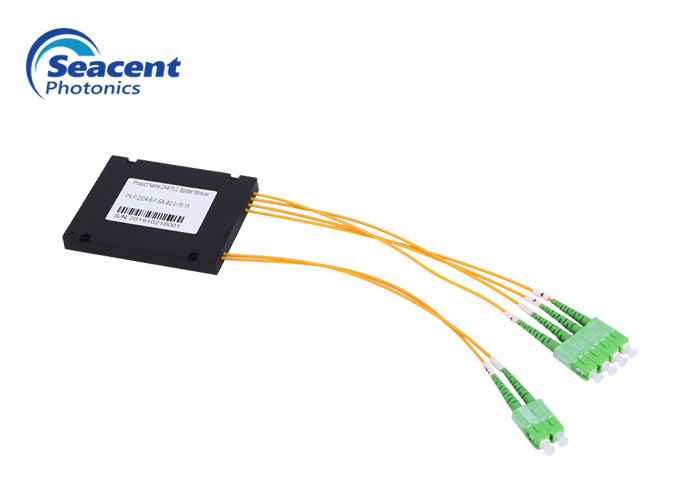

Optical Plc Splitter 2X4 Ftth Splitter Box For Fiber Optic Cable

Optical Plc Splitter 2X4 Ftth Splitter Box For Fiber Optic Cable

Brand Name: Seacent
Model Number: 2X4 ABS Box
MOQ: 1 piece
Price: USD 4.7-6.78 per piece
Payment Terms: L/C, T/T
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001,ROHS
Product Name:
Fiber Optic PLC Splitter
Application:
FTTH FTTB FTTX PON CATV
Connector Type:
SC/APC
RL:
≥55 DB
IL:
7.5 DB
PDL:
≤0.25 DB
Supply Ability:
100,000 pieces per month
High Light:

Optical Plc Splitter 2X4

,

2X4 Ftth Splitter

,

Ftth Plc Splitter 2X4

Product Description

Optical Plc Splitter 2X4 Ftth Splitter Box For Fiber Optic Cable



 Seacent Photonics PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications. We offer a variety of box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications. All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.



Features:

  • Low loss and stable polarization
  • Low Polarization Dependent Loss
  • Compact design
  • Excellent channel uniformity
  • High stability and reliability
  • Excellent Mechanical Stability
  • Certified by Telcordia GR.1209 and GR.1221



Application:

  • Fiber to the home (FTTH)
  • Passive optical network (PON)
  • wired TV internet
  • PON-FTTX network
  • Gigabit Passive Optical Networks (GPON)



Specifications:

Item Parameter

IL(dB)

7.5

RL(dB)

≥55

PDL(dB)

≤0.25

Uniformity (dB)

≤1.0

Directionality (dB)

≥55

Fiber type

G657A1 or customized

Fiber length (m)

1.0 or customized

Working wavelength (nm)

1260-1650

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature °C

-40℃- 85℃

Note: The above IL is without the connector parameters.

          2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.



Ordering information:

product type

Inlet and exit diameter

Inlet and fiber length

ABS box size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

1128=1X128

2=2.0mm

3=3.0mm

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=customized

2x2       100x45x10 mm

  to         or

2x8       100x80x10 mm



2x12      100x80x10 mm

  to           or

2x32      120x80x18 mm



2x64

  to         141x115x18 mm

2x128
