Cassette PLC Splitter
>

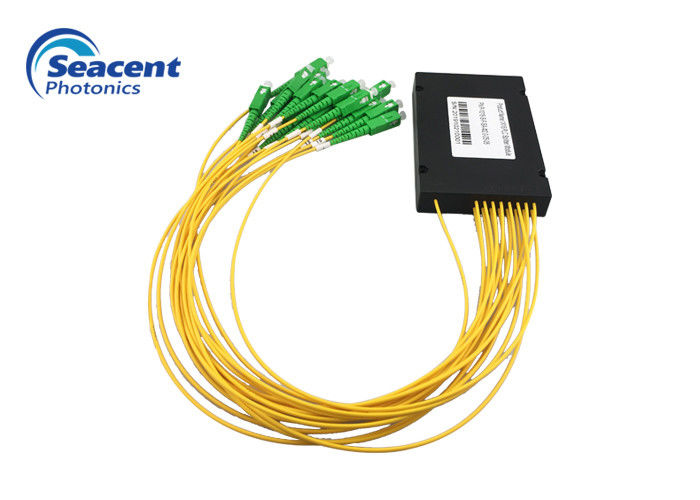

Low Insertion Loss 2.00mm Cassette PLC Splitter 1X16 For FTTX PON

Low Insertion Loss 2.00mm Cassette PLC Splitter 1X16 For FTTX PON

Brand Name: Seacent
Model Number: 1X16 ABS Module
MOQ: 1 piece
Price: USD 4.98-10.38 per piece
Payment Terms: L/C, T/T
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001,ROHS
Product Name:
Fiber Optic PLC Splitter
Application:
FTTH FTTB FTTX PON
Connectors:
SC/APC
RL:
≥55 DB
IL:
13.5 DB
PDL:
≤0.3 DB
Supply Ability:
100,000 pieces per month
High Light:

Cassette PLC Splitter 1X16

,

Low Insertion Loss PLC Splitter

,

2.00mm Cassette PLC Splitter

Product Description

Low Insertion Loss 2.00mm Cassette PLC Splitter 1X16 For FTTX PON





Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.



Seacent Photonics pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It’s mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.



Features:

  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent uniformity
  • High stability and reliability
  • Wide operating temperature:-40℃- 85℃
  • Telcordia GR.1209 and GR.1221



Application:

  • FTTH
  • Passive optical network (PON)
  • wired TV internet
  • Local area networks (LAN)
  • PON-FTTX network



Specifications:

Item Parameter

IL (dB)

13.5

Uniformity (dB)

≤1.0

PDL dB)

≤0.3

RL (dB)

≥55

Directionality (dB)

≥55

Fiber type

G657A1 or customized

Fiber length (m)

1.0M or customized

Working wavelength (nm)

1260-1650

Temperature stability (dB)

≤0.5

Maximum power (nW)

1000

Note: The above IL is without the connector parameters.

          1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.





Ordering information:

product type

Inlet and exit diameter

Inlet and fiber length

ABS box size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

1128=1X128

2=2.0mm

3=3.0mm

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=customized

1x2       100x45x10 mm

  to         or

1x8       100x80x10 mm



1x12      100x80x10 mm

  to           or

1x32      120x80x18 mm



1x64

  to         141x115x18 mm

1x128
