| Brand Name: | Seacent |
| Model Number: | 2X32 ABS Box |
| MOQ: | 1 piece |
| Price: | USD 29.98-49.98 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

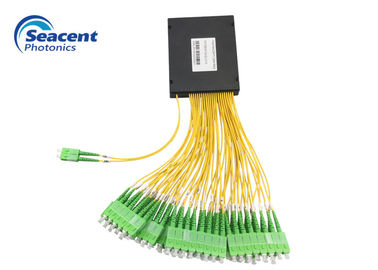

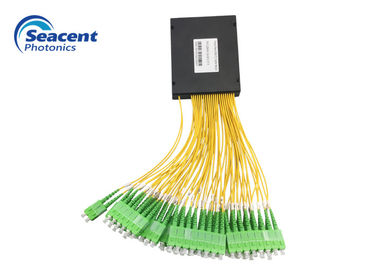

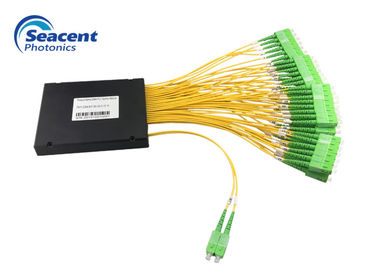

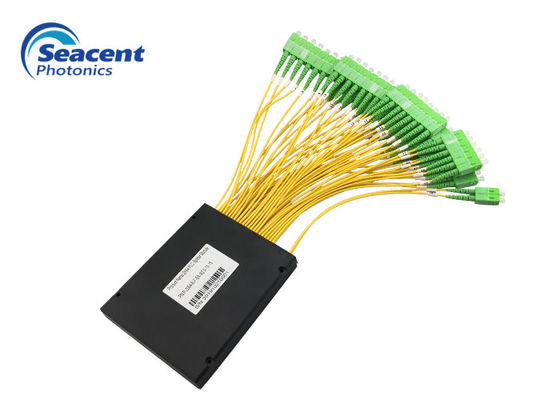

Fiber Optic PLC Splitter 2X64 ABS Box 2.00mm with SC/APC Connectors
Seacent Photonics offers a large selection of polarization maintaining (PM) 1xN and 2xN optical splitter modules. PM fibers are bonded to the PLC circuit chips using precision multi-fiber alignment techniques. Our splitter modules feature low insertion loss, low polarization dependence and high polarization extinction ratio over a wide wavelength range.
The information below is all about the Fiber Optic PLC Splitter 2X64 ABS Box 2.00mm with SC/APC Connectors.Customized designs are also available for customer needs, call or e-mail us about anything you need that you don't see here.
Features:
Application:
Specifications:
| Item | Parameter |
|
Insertion Loss |
20.4 dB |
|
Return Loss |
≥55 dB |
|
PDL |
≤0.35 dB |
|
Uniformity |
≤2.0 dB |
|
Directionality |
≥55 dB |
|
Fiber type |
G657A1 or customized |
|
Fiber length |
1.0m or customized |
|
Working wavelength |
1260-1650 |
|
Temperature stability |
≤0.5 dB |
|
Working temperature |
-40℃- 85℃ |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Ordering information:
|
product type |
Inlet and exit diameter |
Inlet and fiber length |
ABS box size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=2.0mm 3=3.0mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=customized |
2x2 100x45x10 mm to or 2x8 100x80x10 mm
2x12 100x80x10 mm to or 2x32 120x80x18 mm
2x64 to 141x115x18 mm 2x128
|
|
|
