| Brand Name: | Seacent |
| Model Number: | 1x2 insertion type |
| MOQ: | 1 piece |
| Price: | USD 2.49-2.99 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,0000 pieces per months |

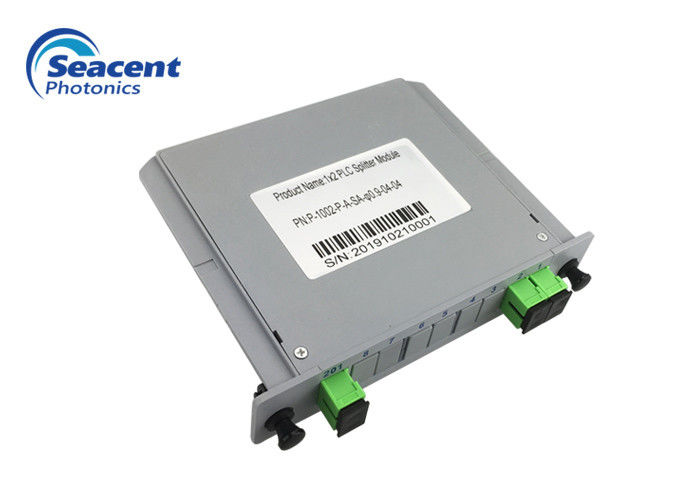

Insertion Type Optical Plc Splitter 0.9mm 0.5m 1x2 Fiber Optic Splitter
PLC Splitters , also called Planar Lightwave Circuits Splitters are fully passive optical branching devices that exhibit very low insertion loss and PDL, great channel uniformity and a wide wavelength operative range. These splitters are manufactured and tested to Telcordia-1209-core & GR-1221-core to provide high performance, specifically designed to meet the tough requirement of FTTH,PON and CATV networks.
Seacent Photonics offers 1xN and 2xN insertion type PLC Splitter, the information below is all about insertion type 1x2 0.9mm 0.5m with SC/APC connector.
Features:
Application:
Specifications:
| Item | Parameter |
|
Insertion loss (dB) |
4.2 |
|
Uniformity (dB) |
≤0.4 |
|
Polarization dependent loss (dB) |
≤0.25 |
|
Return loss (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Fiber type |
G657A1 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
Insert box size |
|
1XNor 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 |
2=0.9mm |
0=0.5M S=Customized |
1x2 to 130x100x25 mm 1x8
1x12 to 130x100x50 mm 1x16
1x24 to 30x100x102 mm 1x32
1x64 130x100x206 mm |
|
|
