| Brand Name: | Seacent |
| Model Number: | 2x4 insertion module |
| MOQ: | 1 piece |
| Price: | USD 4.8-4.89 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,0000 pieces per months |

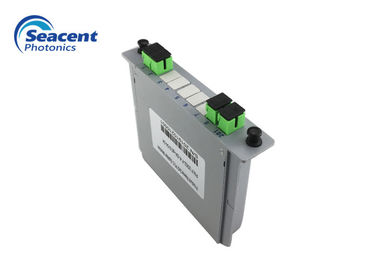

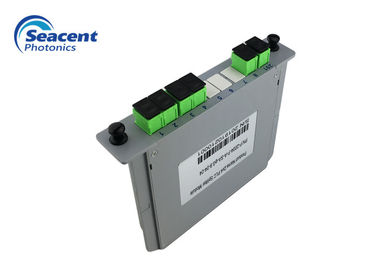

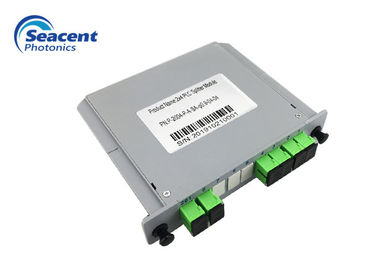

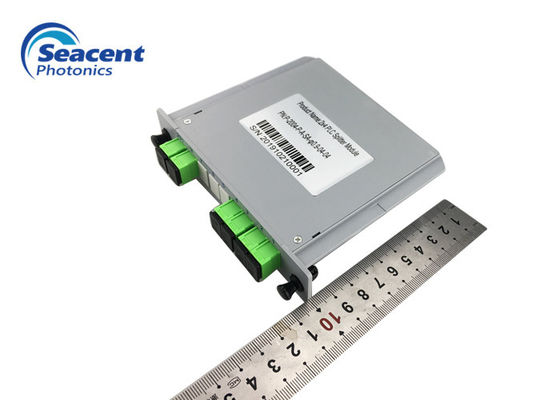

Compact design 7.8dB Cassette PLC Splitter 2x4 For Passive Optical Network
Seacent Photonics offers the PLC Splitters with all kinds of connectors,including SC,FC,LC,ST and APC or UPC polishing type as customer request.Our splitter modules feature low insertion loss, low polarization dependence and high polarization extinction ratio over a wide wavelength range and certified by Telcordia GR.1209 and GR.1221.
Features:
Application:
Specifications:
| Item | Parameter |
|
IL (dB) |
7.8 |
|
Uniformity (dB) |
≤1.0 |
|
Polarization dependent loss (dB) |
≤0.25 |
|
RL (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260nm-1650nm |
|
Fiber type |
G657A1 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
Insert box size |
|
1XNor 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 |
2=0.9mm |
0=0.5M S=Customized |
2x2 to 130x100x25 mm 2x8
2x12 to 130x100x50 mm 2x16
2x24 to 30x100x102 mm 2x32
2x64 130x100x206 mm |
|
|
