Low cost 50GHZ 96CH AAWG Wavelength Division Multiplexer Demultiplexer

Minimum Order Quantity : 1 Delivery Time : 5-8 work days
Payment Terms : L/C, T/T
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: AAWG-96CH 50GHZ

Detail Information

Fiber Type: 900um Loose Tube,Corning SMF-28e,Dual Fiber,SMF,Common G657A Fiber With 900mm Loose Tube Package: 19'' Rack Mount,Module/Rack,LGX,ABS,1U Rackmount
Warranty: 3 Years Channels: 17CH,40CH,48CH,96CH Or Customized
Connector: LC/UPC,LC,ST,FC,SC Color: Black,Blue,Orange,White
High Light:

athermal awg

,

awg arrayed waveguide grating

Product Description

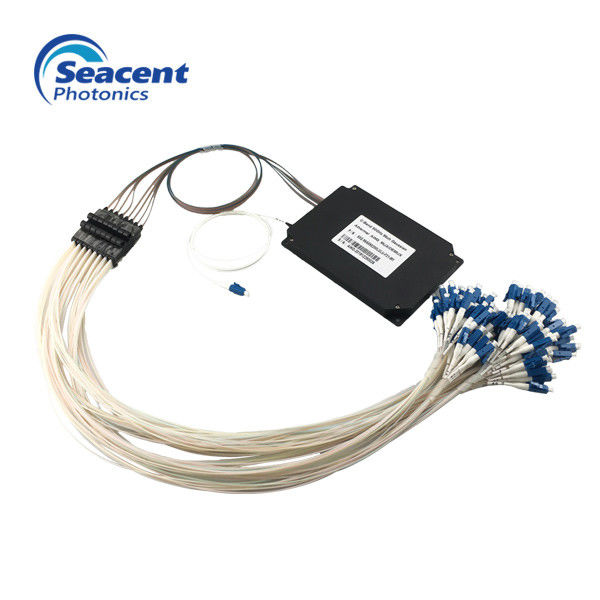

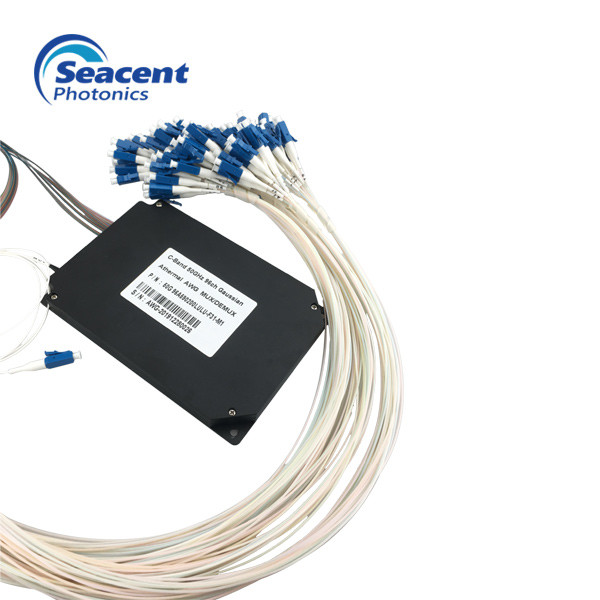

Low cost 50GHZ 96CH AAWG Wavelength Division Multiplexer Demultiplexer

Description:

Athermal Arrayed Waveguide Grating (Athermal AWG) has equivalent performance to standard AWGs but requires no electrical power for stabilization. Athermal AWGs can be used as direct replacements for Thin Film Filters for cases where no power is available at the shelf and they can also be used outdoors over -30ºC to +70ºC in access applications, extending the cost performance benefits of AWGs.

Technical Parameters
Parameter unit Flat top Gaussian Flat top Gaussian
Number of channels   16/32/40/48 80/88/96
Channel spacing Ghz 50 50
Channel frequency Thz Blue band=1528.773~1547.316 C band=1526.827~1564.679
Red band=1545.720~1564.679
Wavelength accuracy nm ±0.05 ±0.05 ±0.05 ±0.05
1db bandwidth nm >0.18 >0.12 >0.18 >0.12
3db bandwidth nm >0.28 >0.20 >0.28 >0.20
Insertion loss (passband) dB <4.5 <3.7 <5.5 <4.5
Adjacent channel crosstalk dB >27 >27
Non-adjacent channel crosstalk dB >30 >30
Total crosstalk dB >24 >24
Insertion loss uniformity dB <1.2 <1.5
Polarization loss dB <0.5 <0.5 <0.5 <0.5
Return loss dB >40
Dispersion ps/nm ±10
Operating temperature ºC -20~70
Size (length * width * height) mm 120*70*12.3 130*90*11.3

Features:
Low cost
Mass production
Compact package
Dense wavelength division multiplexing system
Realize upstream and downstream dual-frequency band by using single-chip microcomputer

Application:
Real-time line monitoring system
CATV, FTTH, ROADM, LAN, WAN system
Signal, network monitoring
