Chassis Type AWG Mux Demux Compact Size For Backbone Network / Datacenter

Minimum Order Quantity : 1 Delivery Time : 5-8 work days
Payment Terms : L/C, T/T
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: AWG-Chassis type

Detail Information

Channel Spacing: 100 GHZ Channel Number: 48/40
Wavelength Accuracy: ±0.05 Nm Uniformity: ≤1.5 DB
Polarization Dependent Loss: ≤0.5 DB Operation Temperature: -5~+85
High Light:

awg multiplexer

,

awg optical

Product Description

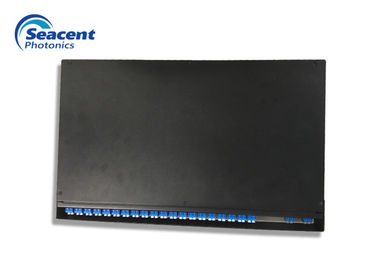

AWG 1U Chassis Optical Multiplexer And Demultiplexer For WDM - PON System



Description:
There are two types of 40Ch 100G MUX/DEMUX AWG, Flattop and Gaussian, all of them are passive, no power.Flat top type is normal,Max IL is 5dB,cost-effective.
The Max IL of Gaussian is 3.5dB. 5G is coming, AAWG is widely used to the WDM-PON system now.

Features:
Athermal design operates over operating temperature range
Large channel number
High stability and reliability
Compact size

Applications:
WDM-PON
Datacenter
Backbone Network

Technical Parameters
Parameter Unit Value
Pass Band Type Flat-top Gaussian
Channel Spacing GHz 100
Channel Number   48/40
Wavelength Accuracy nm ±0.05
1dB Pass Band 1dB nm ≥0.38 0.2
3dB Pass Band 3dB nm ≥0.58 0.4
Insertion Loss1 dB ≤5.0 3.5
Ripple dB ≤0.5
Uniformity dB ≤1.5
Adjacent Crosstalk dB ≥23
Non-adjacent Crosstalk dB ≥29
Total Crosstalk dB ≥21
Polarization Dependent Loss(PDL) dB ≤0.5
PMD2 ps ≤0.5
Chromatic Dispersion2 ps/nm ±20
Return Loss dB ≥40
Fiber Input Port mm Φ0.9
Output Ribbon - -
Fan Out mm Φ0.9
Operation Temperature -5~+85
Storage Temperature -40~+85
Package mm Standard 1U Rack Mount
