| Brand Name: | Seacent |
| Model Number: | 1x16 mini module |
| MOQ: | 1 piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

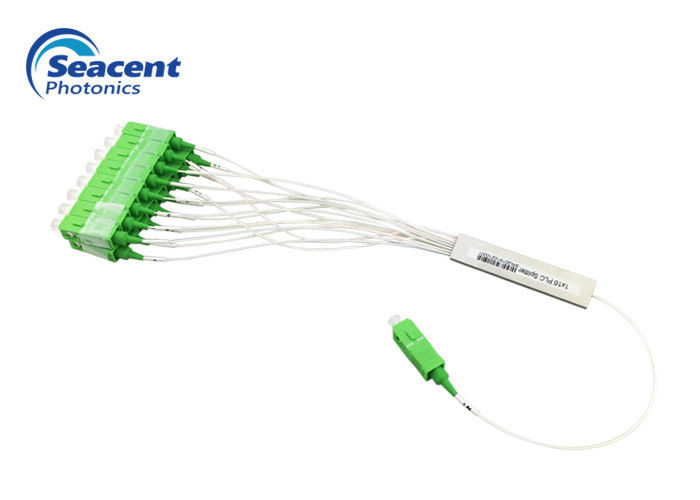

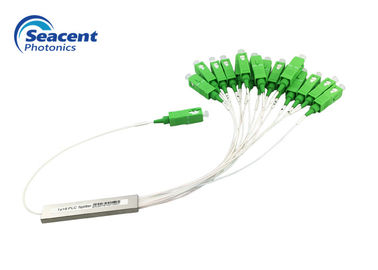

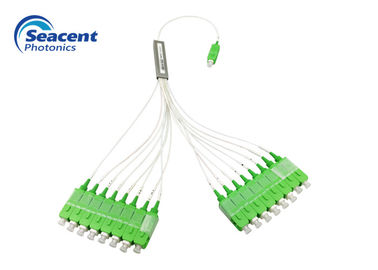

Fiber Optic PLC Splitter mini module 1x16 with SC/APC connector
As fiber optic link becomes more and more acceptable by average consumers, Passive Optical Network (PON) systems are more widely deployed in common homes. Fiber optic splitter is an indispensable passive optical device in PON systems. Optical splitters can be divided into Fused Biconical Taper (FBT) splitter and Planar Lightwave Circuit (PLC) splitter. PLC splitter is newer than FBT splitter and is also the focus of this post.
Seacent Photonics offers excellent performance PLC splitter .Here are the details of 1x16 mini module fiber optic splitter:
Features:
Appliacation:
Specifications:
| Item | Parameter |
|
IL(dB) |
13.5 |
|
Uniformity (dB) |
≤1.0 |
|
PDL (dB) |
≤0.3 |
|
RL(dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature |
40℃- 85℃ |
|
Fiber type |
G657A1 or customized |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=0.9mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
1x2 to 4x7x60mm 1x8
1x12 to 4x12x60 mm 1x16
1x24 to 6x20x80 mm 1x32
1x64 6x40x100 mm |
|
|
