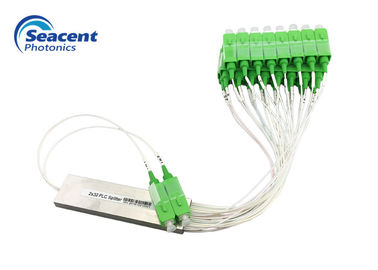

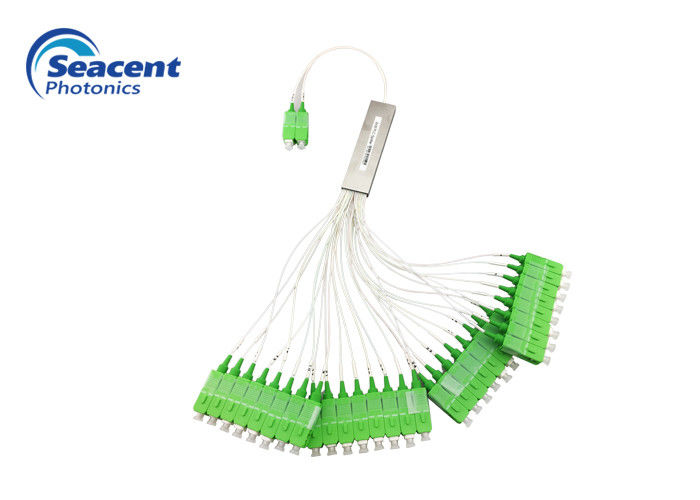

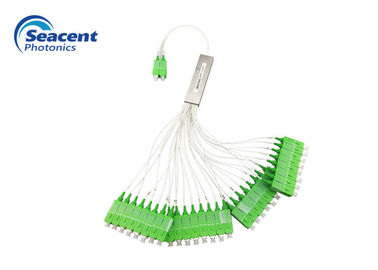

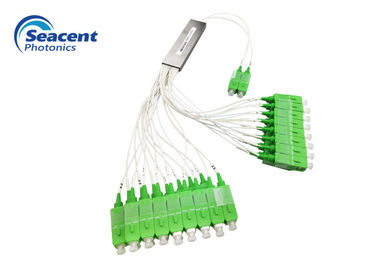

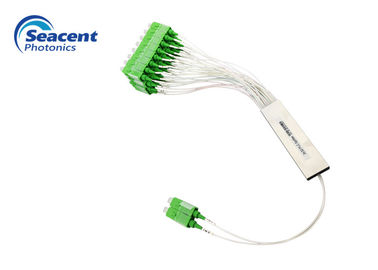

Mini Module Fiber Optic PLC Splitter , 2x32 Splitter Good Channel Uniformity

Minimum Order Quantity : 1 piece Delivery Time : 5-8 work days
Payment Terms : L/C, T/T Supply Ability : 100,000 pieces per month
Place of Origin: Guangdong , China Brand Name: Seacent
Certification: ISO9001 , ROHS Model Number: 2x32 mini module

Detail Information

Product Name: Fiber Optic PLC Splitter Connector: SC/APC
Return Loss: ≥55 DB Insertion Loss: 17.1 DB
PDL: ≤ 0.3 DB Directionality: ≥55 DB
High Light:

optical plc splitter

,

plc fiber splitter

Product Description

Fiber Optic PLC Splitter mini module 1x32 with SC/APC connector



Fiber optic PLC splitter can be categorized by the PLC splitter chip they use, meaning there are 1xN and 2xN PLC splitters, such as 1x4, 1x8, 1x16, 2x32, 2x64, etc. Installers can choose different input and output numbers depending on subscriber conditions or cable length.



PLC splitter manufacturers produce different packages of PLC modules to meet customers’ needs in various scenarios, including small size PLC splitter that need to be used in terminal box and big size rack mounted PLC that can be installed in racks. Actually the package of PLC splitter is a key factor to be considered in purchase.



Seacent Photonics offers excellent performance PLC splitter .Here are the details of 1x32 mini module fiber optic splitter:



Features:

  • Low loss
  • Stable polarization
  • Compact design
  • Good channel uniformity
  • High stability and reliability
  • Telcordia GR.1209 and GR.1221

Appliacation:

  • FTTH
  • CATV
  • Passive optical network(PON)
  • wired TV internet
  • PON-FTTX network

Specifications:

Item Parameter

IL(dB)

17.1

RL(dB)

≥55

PDL (dB)

≤0.3

Uniformity (dB)

≤1.5

Directionality (dB)

≥55

Fiber length (m)

1.0 or customized

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature

-40℃~85℃

Fiber type

G657A1 or customized

Note: The above IL is without the connector parameters.

2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.



Ordering information:

Product type

Inlet and exit diameter

Inlet and fiber length

size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

1128=1X128

2=0.9mm

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

1x2

 to              4x7x60mm

1x8



1x12

 to              4x12x60 mm

1x16



1x24

 to             6x20x80 mm

1x32



1x64          6x40x100 mm
