DWDM Mux Demux
>

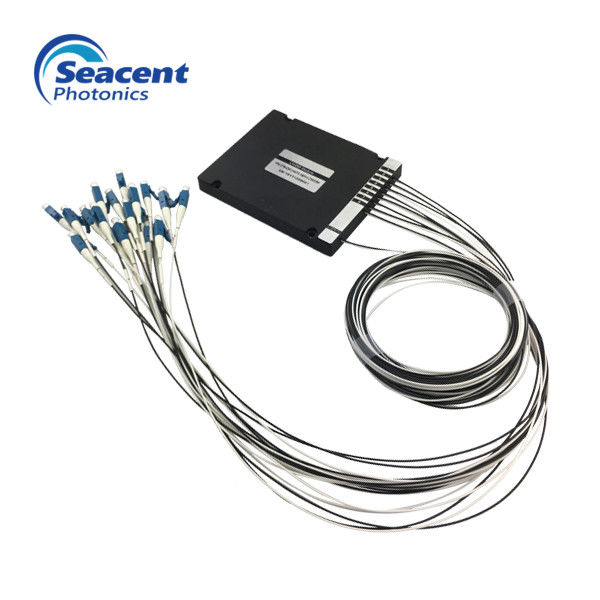

Cassette Type DWDM Mux Demux 1×8

Cassette Type DWDM Mux Demux 1×8

Brand Name: Seacent
Model Number: DWDM cassette type
MOQ: 1 piece
Payment Terms: L/C, T/T, D/P
Detail Information
Place of Origin:
Guangdong,China
Certification:
ISO9001,ROHS
Product Name:
DWDM MUX / DEMUX / OMA
Certification:
ISO9001,RoHS
Center Wavelength:
ITU-Grid ( 100GHz ) Nm
Storage Temperature:
-40 To 85C
Opterating Temperature (℃):
-20~+75
Application:
FTTH FTTB FTTX Network
Highlight:

DWDM Mux Demux 1×8

,

dwdm module

,

Cassette DWDM Mux Demux

Product Description

DWDM cassette type 1 *16multi-channel 100G dense wavelength division multiplexer

Description:
DWDM is using optical multiplexers to reuse different wavelengths of light into a single fiber to transmit signals. At the receiving end of the link, the mixed signal is decomposed into signals in the fiber by means of an optical demultiplexer Different wavelengths are connected to the corresponding receiving equipment.

Features:
High isolation
Wide operating temperature: -20 ℃ ~ 70 ℃
Low insertion loss
Low PDL
Compact design
Good channel-to-channel consistency
High reliability and stability

Application:
PON network
CWDM system
Cable chain

Technical Parameters
Item Parameter
Center wavelength (nm) ITUGrid
Product Features Mux orDemux or Mux&Demux
Channel pitch (nm) 100G 200G
Channel passband (@ -0.5db bandwidth (nm) >0.3 >0.5
Number of channels (ch) 4 8 16
Insertion loss (dB) ≤1.8 ≤3.0 ≤5.0
Channel flatness (dB) ≤0.5 ≤0.5 ≤0.5
Isolation (dB) adjacent >30 >30 >30
Isolation (dB) non-adjacent >45 >45 >45
Polarization-dependent loss (dB) <0.2
Polarization Mode Dispersion (PS) <0.1
Directivity (dB) >50
Return loss (dB) >45
Connector type LC/APC or customer specified
Maximum power (mW) 500
Working temperature (℃) -20~70
Storage temperature (℃) -40~85
Package type (mm) LGX, cassette, rack or customer specified
Package size (mm) LGX:201x256x44 or 155x100x29
Box:100x80x10 or 120x80x18 or 141x120x28
Rack:1U: 484x260x44 or 2U: 482x260x88
Note: The above parameters do not include connectors
