| Brand Name: | Seacent |
| Model Number: | 1x64 mini module |
| MOQ: | 1 piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

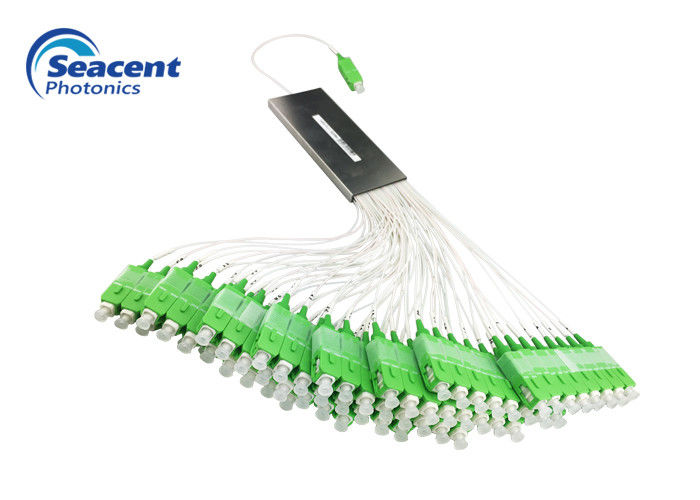

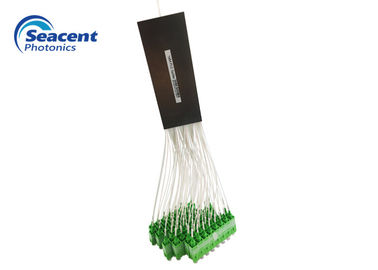

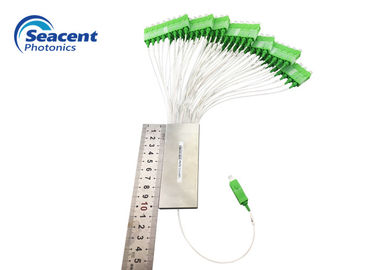

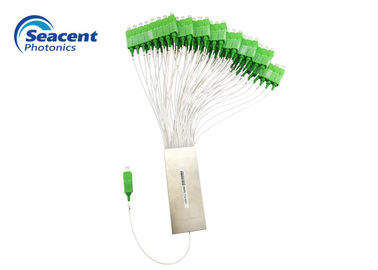

Fiber Optic PLC Splitter mini module 1x64 with SC/APC connector
Fiber optic PLC splitter is a low cost fiber distribution solution in passive optical networks. PLC splitter design is based on planar waveguide circuit technology, and the key component PLC splitter chip offers high optical performance. The splitting ratios of PLC splitters can be 1x2 to 64 or 2x2 to 64, which can meet different subscriber numbers and PON architectures in GPON, EPON, FTTX applications. Besides, the package of PLC splitter can be either small form factor or standard 19” design to fit various implementing environments.
Features:
Appliacation:
Specifications:
| Item | Parameter |
|
IL(dB) |
20.1 |
|
RL(dB) |
≥55 |
|
PDL (dB) |
≤0.35 |
|
Uniformity (dB) |
≤1.8 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature |
40℃- 85℃ |
|
Fiber type |
G657A1 or customized |
Note: The above IL is without the connector parameters.
1XN with connector optical splitter insertion loss in the above requirements in addition to 1X2 increase does not exceed 0.2dB, the remaining increase does not exceed 0.3dB.
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=0.9mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
1x2 to 4x7x60mm 1x8
1x12 to 4x12x60 mm 1x16
1x24 to 6x20x80 mm 1x32
1x64 6x40x100 mm |
|
|
