| Brand Name: | Seacent |
| Model Number: | 2x4 micro type |
| MOQ: | 1 piece |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100,000 pieces per month |

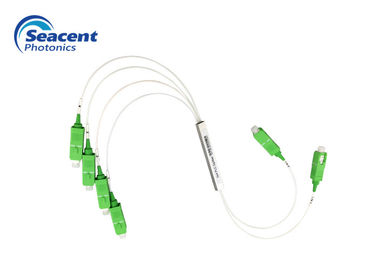

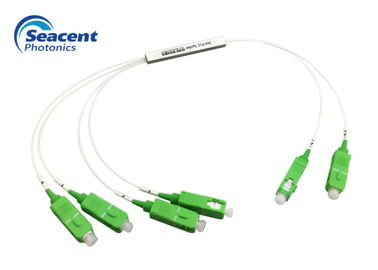

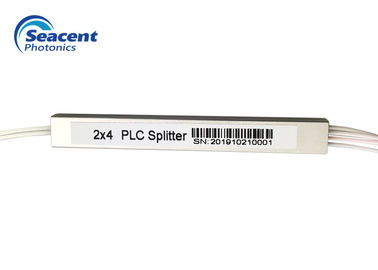

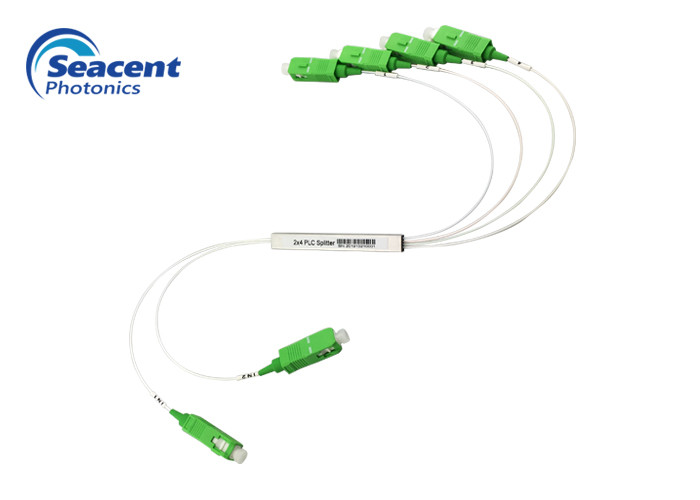

Fiber Optic PLC Splitter 2x4 micro type with SC/APC connector
A PLC (planar lightwave circuit) is a micro-optical component based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.
Seacent Photonics offers excellent performance PLC splitter .Here are the details of 2x4 micro type fiber optic splitter:
Features:
Appliacation:
Specifications:
| Item | Parameter |
|
IL(dB) |
≤ 7.5 |
|
Uniformity (dB) |
≤1.0 |
|
PDL (dB) |
≤0.25 |
|
RL(dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature |
40℃- 85℃ |
|
Fiber type |
G657A1 or customized |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=0.9mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
2x2 to 4x7x60mm 2x8
2x12 to 4x12x60 mm 2x16
2x24 to 6x20x80 mm 2x32
2x64 6x40x100 mm |
|
|
