| Brand Name: | Seacent |
| Model Number: | 2x8 mini module |
| MOQ: | 1 piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,000 pieces per month |

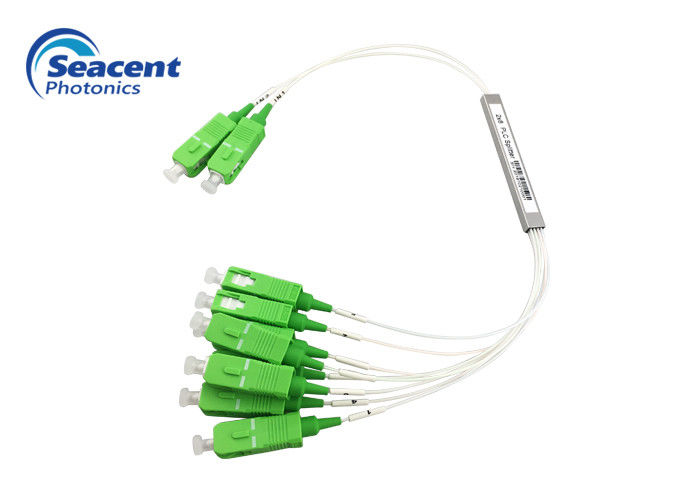

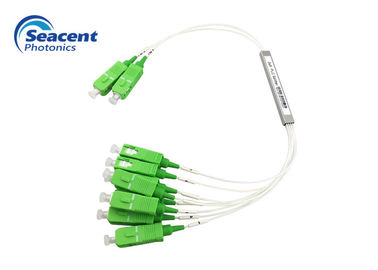

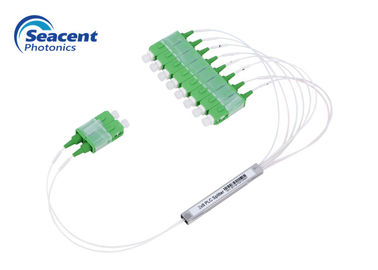

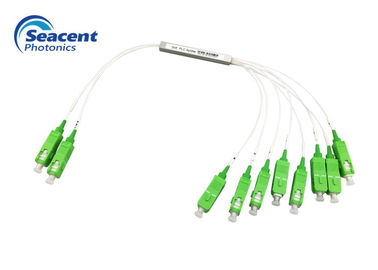

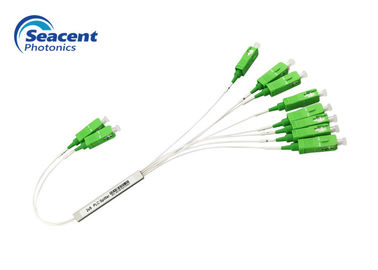

Fiber Optic PLC Splitter mini module 2x8 with SC/APC connector
PLCs are manufactured using silica glass waveguide circuits that are aligned with a v-groove fiber array chip that uses ribbon fiber. Once everything is aligned and bonded, it is then packaged inside a miniature housing. PLC splitters have high quality performance, such as low insertion loss, low PDL, high return loss, etc.
Seacent Photonics offers excellent performance PLC splitter .Here are the details of 2x8 micro type fiber optic splitter:
Features:
Appliacation:
Specifications:
| Item | Parameter |
|
IL(dB) |
10.5 |
|
Uniformity (dB) |
≤1.0 |
|
PDL (dB) |
≤0.25 |
|
RL(dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature |
40℃- 85℃ |
|
Fiber type |
G657A1 or customized |
Note: The above IL is without the connector parameters.
2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
size |
|
1XN or 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 1128=1X128 |
2=0.9mm |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M S=Customized |
2x2 to 4x7x60mm 2x8
2x12 to 4x12x60 mm 2x16
2x24 to 6x20x80 mm 2x32
2x64 6x40x100 mm |
|
|
