Compact Design Fiber Optic PLC Splitter Steel Tube 2x32 With SC/APC Connector

Compact Design Fiber Optic PLC Splitter Steel Tube 2x32 With SC/APC Connector

Brand Name: Seacent
Model Number: 2x32 steel tube
MOQ: 1 piece
Payment Terms: L/C, T/T
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
Guangdong , China
Certification:
ISO9001 , ROHS
Product Name:
Fiber Optic PLC Splitter
Connector:
SC/APC
RL:
≥55 DB
IL:
≤17.1 DB
PDL:
≤ 0.3 DB
Directionality:
≥55 DB
Supply Ability:
100,000 pieces per month
High Light:

optical plc splitter

,

bare plc splitter

Product Description

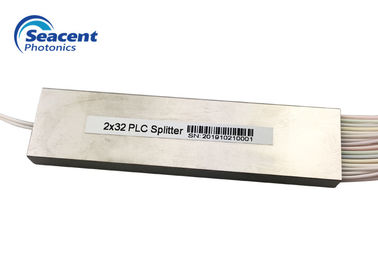

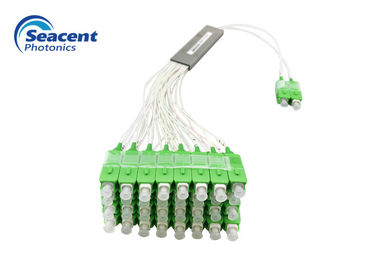

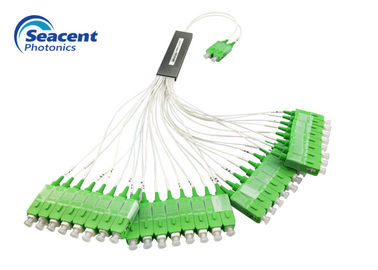

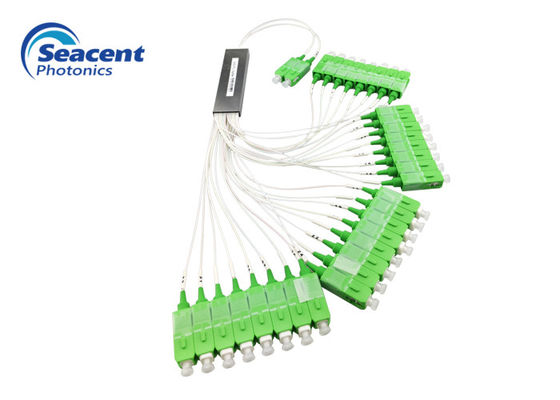

Fiber Optic PLC Splitter steel tube 2x32 with SC/APC connector



2x32 Steel Tube 0.9mm Fiber Optic PLC Splitters manufactured by Seacent Photonics have stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets. This 2x32 steel tube PLC Splitter is stable quality, low cost and largely demanded fiber optic products.



Seacent Photonics offers excellent performance PLC splitter .Here are the details of 2x32 steel tube fiber optic splitter:



Features:

  • Low insertion loss
  • Stable polarization
  • Compact design
  • Excellent channel uniformity
  • High stability and reliability
  • Telcordia GR.1209 and GR.1221

Appliacation:

  • FTTH
  • CATV
  • Passive optical network
  • wired TV internet
  • PON-FTTX network

Specifications:

Item Parameter

IL(dB)

17.1

Uniformity (dB)

≤1.5

PDL (dB)

≤0.3

RL(dB)

≥55

Directionality (dB)

≥55

Fiber length (m)

1.0 or customized

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature

40℃- 85℃

Fiber type

G657A1 or customized

Note: The above IL is without the connector parameters.

2XN with connector optical splitter insertion loss increased by no more than 0.3dB in the above requirements.



Ordering information:

Product type

Inlet and exit diameter

Inlet and fiber length

size

1XN or 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

1128=1X128

2=0.9mm

0=0.5M

1=1.0M

2=1.5M

3=2.0M

4=2.5M

S=Customized

2x2

 to              4x7x60mm

2x8



2x12

 to              4x12x60 mm

2x16



2x24

 to             6x20x80 mm

2x32



2x64          6x40x100 mm
