| Brand Name: | Seacent |
| Model Number: | 1x16 insertion type |
| MOQ: | 1 piece |
| Price: | USD 7.98-8.48 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,0000 pieces per months |

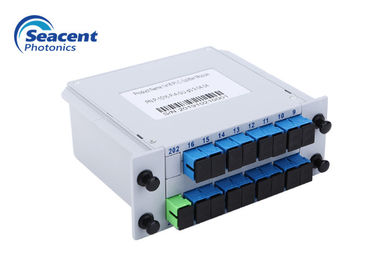

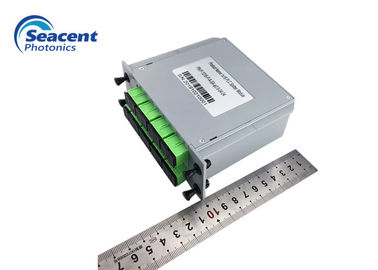

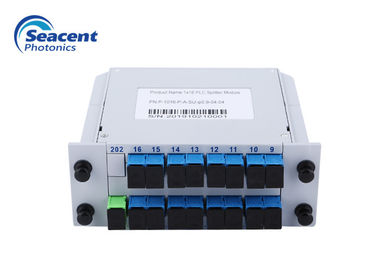

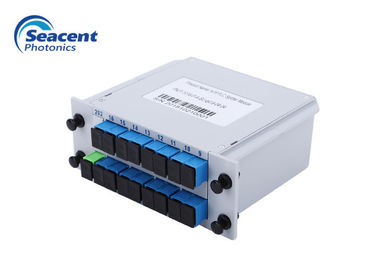

Fiber Optic PLC Splitter plug-in 1x16 0.9mm 0.5m with SC/APC connector
1x16 plug-in type Fiber Optic PLC Splitters With SCAPC Connector manufactured by Seacent Photonics are fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability. This 1x16 plug-in type PLC Splitters are commonly used to distribute optical signals from Central Office (CO) to multiple premise locations in Fiber to the point (FTTx) deployments and other passive optical networks (e.g., EPON, GPON, BPON).
Features:
Application:
Specifications:
| Item | Parameter |
|
IL (dB) |
13.8 |
|
Uniformity (dB) |
≤1.0 |
|
Polarization dependent loss (dB) |
≤0.3 |
|
RL (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Fiber type |
G657A1 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
Insert box size |
|
1XNor 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 |
2=0.9mm |
0=0.5M S=Customized |
1x2 to 130x100x25 mm 1x8
1x12 to 130x100x50 mm 1x16
1x24 to 30x100x102 mm 1x32
1x64 130x100x206 mm |
|
|
