Cassette PLC Splitter
>

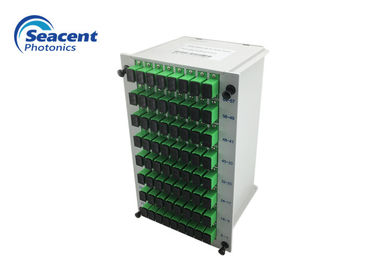

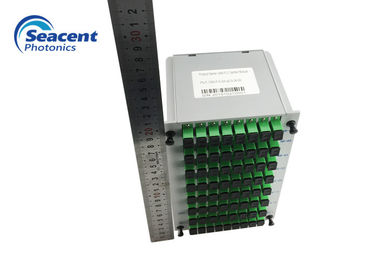

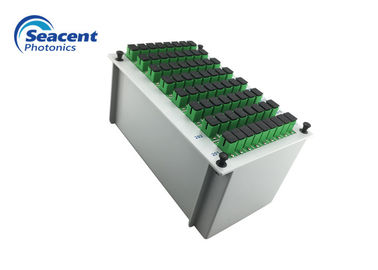

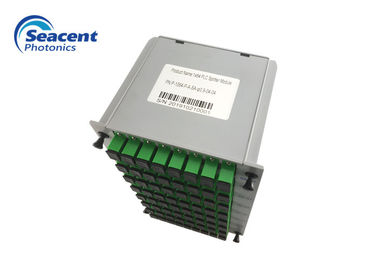

1x64 0.9mm 0.5m Cassette PLC Splitter Inset Type 17.1 DB Insertion Loss

1x64 0.9mm 0.5m Cassette PLC Splitter Inset Type 17.1 DB Insertion Loss

Brand Name: Seacent
Model Number: 1x64 insertion type
MOQ: 1 piece
Price: USD 38.5-42.98 per piece
Payment Terms: L/C, T/T
Supply Ability: 100,0000 pieces per months
Detail Information
Place of Origin:
Guangdong , China
Certification:
ISO9001, ROHS
Product Name:
Fiber Optic PLC Splitter
Type:
1*2/1*4/1*8/1*16/1*32/1*64
Insertion Loss:
17.1 DB
Return Loss:
≥55 DB
Connector:
SC/APC
Operating Temperature:
-40°C - 85°C
Supply Ability:
100,0000 pieces per months
High Light:

17.1dB optical splitter box

,

17.1dB Cassette PLC Splitter

,

0.9mm 0.5m Cassette PLC Splitter

Product Description

1x64 0.9mm 0.5m Cassette PLC Splitter Inset Type 17.1 DB Insertion Loss



PLC Splitters have high quality performance, such as high return loss,low insertion loss, low PDL and excellent uniformity over a wide wavelength range from 1260 nm to 1620 nm, and work in temperature from -40ºC to +85ºC.
Seacent Photonics provides full series of 1XN and 2XN PLC Splitter products to meet the needs of a variety Applications of engineering design. Our products meet or exceed Telcordia GR-1209-CORE and GR-1221-CORE reliability qualification requirement.



Features:

  • Compact design
  • Low insertion loss
  • Stable polarization
  • Excellent channel uniformity
  • High stability and reliability
  • Certified by Telcordia GR.1209 and GR.1221



Application:

  • Fiber to the home (FTTH)
  • wired TV internet
  • Passive optical network (PON)
  • PON-FTTX network





Specifications:

Item Parameter

IL (dB)

20.5

Uniformity (dB)

≤1.8

Polarization dependent loss (dB)

≤0.4

RL (dB)

≥55

Directionality (dB)

≥55

Fiber length (m)

1.0 or customized

Working wavelength (nm)

1260-1650

Fiber type

G657A1 or customized

Temperature stability (dB)

-40℃- 85℃(≤0.5)

Working temperature °C

-40℃- 85℃





Ordering information:

Product type

Inlet and exit diameter

Inlet and fiber length

Insert box size

1XNor 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

2=0.9mm

0=0.5M

S=Customized

1x2

 to       130x100x25 mm

1x8



1x12

 to       130x100x50 mm

1x16



1x24

 to        30x100x102 mm

1x32



1x64     130x100x206 mm
