Cassette PLC Splitter

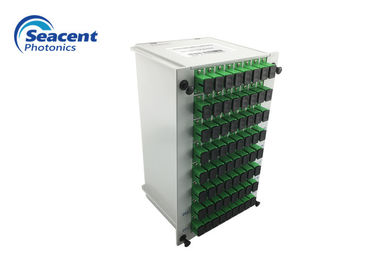

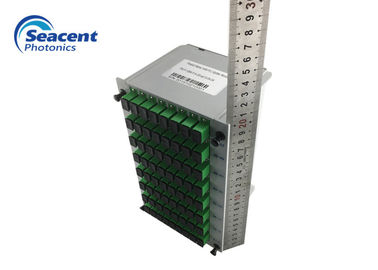

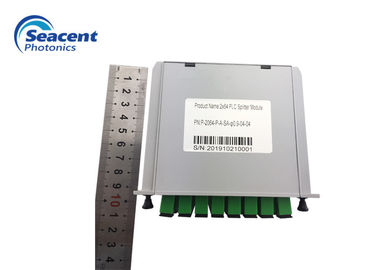

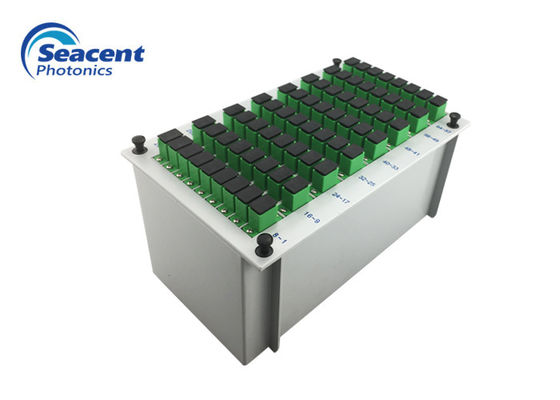

Insertion Type Fiber Plc Splitter 2x64 0.9mm With Stable Polarization

All Category

Optical Transceiver Module

Mr. Mike nie

mike.nie@xinhaixun.com

8613713851846

Contact Now

Insertion Type Fiber Plc Splitter 2x64 0.9mm With Stable Polarization

Brand Name:	Seacent
Model Number:	2x64 insertion module
MOQ:	1 piece
Price:	USD 49.9-51.98 per piece
Payment Terms:	L/C, T/T
Supply Ability:	100,0000 pieces per months

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong , China

Certification:

ISO9001, ROHS

Product Name:

Fiber Optic PLC Splitter

Type:

2*2/2*4/2*8/2*16/2*32/2*64

Insertion Loss:

20.8 DB

Return Loss:

≥55 DB

Connector:

SC/APC

Operating Temperature:

-40°C - 85°C

Supply Ability:

100,0000 pieces per months

Highlight:

cassette plc splitter

optical splitter box

Fiber Plc Splitter 2x64

Product Description

Fiber Optic PLC Splitter insertion module 2x32 0.9mm with SC/APC connector

PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, GPON/EPON networks, CATV links and optical signal distribution currently. Seacent Photonics' PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Features:

Compact design
Low loss
Stable polarization
Uniform light
High stability and reliability
Telcordia GR.1209 and GR.1221

Application:

Fiber to the home
wired TV internet
Passive optical network (PON)
PON-FTTX network

Specifications:

Item	Parameter
IL (dB)	20.8
Uniformity (dB)	≤2.0
Polarization dependent loss (dB)	≤0.35
RL (dB)	≥55
Directionality (dB)	≥55
Fiber length (m)	1.0 or customized
Working wavelength (nm)	1260-1650
Fiber type	G657A1 or customized
Temperature stability (dB)	-40℃- 85℃(≤0.5)
Working temperature °C	-40℃- 85℃

Ordering information:

Product type

Inlet and exit diameter

Inlet and fiber length

Insert box size

1XNor 2XN

0102=1X2

0103=1X3

0104=1X4

0105=1X5

0106=1X6

0107=1X7

0108=1X8

0112=1X12

0116=1X16

0124=1X24

0132=1X32

0164=1X64

2=0.9mm

0=0.5M

S=Customized

2x2

to 130x100x25 mm

2x8

2x12

to 130x100x50 mm

2x16

2x24

to 30x100x102 mm

2x32

2x64 130x100x206 mm
