| Brand Name: | Seacent |
| Model Number: | 1x16 Tray Type |
| MOQ: | 1 piece |
| Price: | USD 8.98-9.48 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,0000 pieces per months |

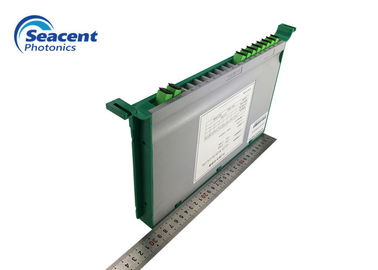

Fiber Optic PLC Splitter Tray type 1x16 0.9mm with SC/APC connector
Seacent Photonics's Tray type PLC Splitter is used for splitters installation with FC/SC/LC adapters. The structure of the tray splitter is the same with the 12 cores splice tray, the adjustable guide rail type installation ensures it can be used on all the ODC/ODF/ODB
Features:
Application:
Specifications:
| Item | Parameter |
|
IL (dB) |
13.8 |
|
Uniformity (dB) |
≤1.0 |
|
Polarization dependent loss (dB) |
≤0.3 |
|
RL (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Fiber type |
G657A1 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
size |
|
1XNor 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 |
2=0.9mm |
0=0.5M S=Customized |
1x2 to 345x195x25 mm 1x16
1x24 to 345x195x50 mm 1x32
1x64 345x195x100 mm |
|
|
