| Brand Name: | Seacent |
| Model Number: | 1x32 Tray Type |
| MOQ: | 1 piece |
| Price: | USD 8.98-9.48 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,0000 pieces per months |

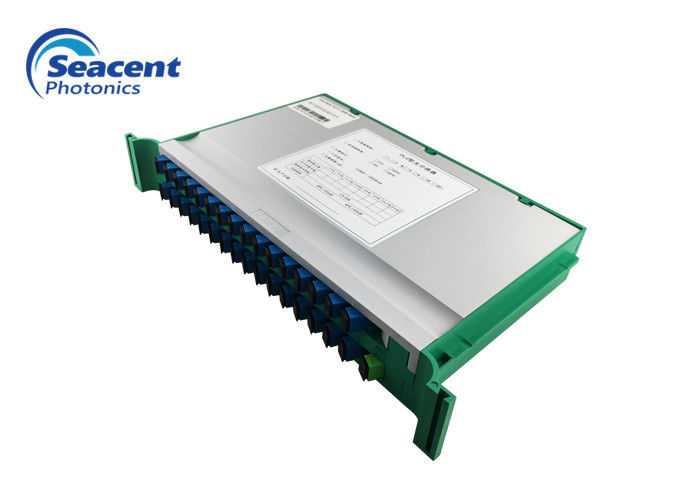

Fiber Optic PLC Splitter Tray type 1x32 0.9mm with SC/APC connector
PLC (Planar Lightwave Circuit) Splitters are splitters with an even split ratio from one or two input fibers to multiple output fibers. Seacet Photonics 1x32 Fiber PLC Splitter can distribute or combine 1 optical signals into 32 outputs fibers.
1x32 Fiber PLC Splitter Tray, G.657A Fiber, 0.9mm, FC, SC, ST & LC connectors for choice, is a packaged system that PLC splitter input fibers and output fibers are preinstalled on a tray which easily fit within ODF (Optical Distribution Frame), the Cross Connection Cabinet and other optical fiber distribution equipment. The splitters are secured within the trays and the trays are tamper-proof to prevent unwanted entry.
Seacent Photonics provides a series of 1xN and 1xN(N=2,4,8,16,32,64) Fiber PLC Splitter Trays which feature low insertion loss, good channel-to-channel uniformity, wide operating wavelength range, excellent environmental stability, and now they’re widely used in PON networks to realize optical signal power splitting as a low-cost solution.
Features:
Application:
Specifications:
| Item | Parameter |
|
IL (dB) |
17.1 |
|
Uniformity (dB) |
≤1.5 |
|
Polarization dependent loss (dB) |
≤0.3 |
|
RL (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Fiber type |
G657A1 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
size |
|
1XNor 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 |
2=0.9mm |
0=0.5M S=Customized |
1x2 to 345x195x25 mm 1x16
1x24 to 345x195x50 mm 1x32
1x64 345x195x100 mm |
|
|
