| Brand Name: | Seacent |
| Model Number: | 2x32 Tray Type |
| MOQ: | 1 piece |
| Price: | USD 19.9-19.4 per piece |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100,0000 pieces per months |

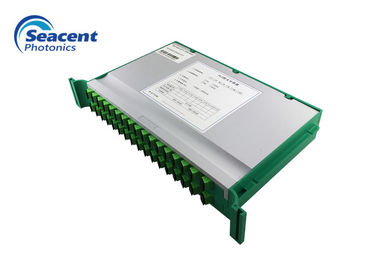

Fiber Optic PLC Splitter Tray type 2x32 2.0mm with SC/APC connector
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Seacent Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features:
Application:
Specifications:
| Item | Parameter |
|
IL (dB) |
17.4 |
|
Uniformity (dB) |
≤1.5 |
|
Polarization dependent loss (dB) |
≤0.3 |
|
RL (dB) |
≥55 |
|
Directionality (dB) |
≥55 |
|
Fiber length (m) |
1.0 or customized |
|
Working wavelength (nm) |
1260-1650 |
|
Fiber type |
G657A1 or customized |
|
Temperature stability (dB) |
-40℃- 85℃(≤0.5) |
|
Working temperature °C |
-40℃- 85℃ |
Ordering information:
|
Product type |
Inlet and exit diameter |
Inlet and fiber length |
size |
|
1XNor 2XN 0102=1X2 0103=1X3 0104=1X4 0105=1X5 0106=1X6 0107=1X7 0108=1X8 0112=1X12 0116=1X16 0124=1X24 0132=1X32 0164=1X64 |
2=0.9mm |
0=0.5M S=Customized |
2x2 to 345x195x25 mm 2x16
2x24 to 345x195x50 mm 2x32
2x64 345x195x100 mm |
|
|
