| Brand Name: | Seacent |

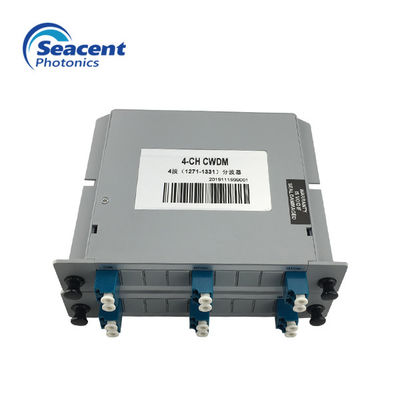

| Model Number: | CWDM insert type 1 * 4 mux demux |
| MOQ: | 10 pcs |
| Payment Terms: | L/C, T/T |
Fiber Optical amplifier
Line Monitoring
Telecommunication
CWDM system
PON network
Cable chain
High Channel Isolation
Low PDL
Compact design
Good channel-to-channel consistency
Wide working wavelength: 1270-1610nm
Wide operating temperature: -20 ℃ ~ 70 ℃
Low insertion loss
High reliability and stability
| Parameter | 4CH | 6CH | 8CH |
| Center wavelength (nm) | ITU or ITU+1(Customizable starting wavelength) | ||
| Product Features | Mux orDemux or Mux&Demux | ||
| Channel wavelength (nm) | 1270~1610 | ||
| Center wavelength accuracy (nm) | ±0.5 | ||
| Channel pitch (nm) | 20 | ||
| Channel passband (@ -0.5db bandwidth (nm) | >14 | ||
| Insertion loss (dB) | ≤1.4 | ≤2.6 | ≤3.0 |
| Channel uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 |
| Channel ripple (dB) | 0.3 | ||
| Isolation (dB) adjacent | >30 | >30 | >30 |
| Isolation (dB) Non-adjacent | >40 | >40 | >40 |
| Polarization-dependent loss (dB) | <0.2 | ||
| Polarization Mode Dispersion (PS) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return loss (dB) | >45 | ||
| Connector type | LC/APCOr customer specified | ||
| Maximum power (mW) | 500 | ||
| Working temperature (℃) | -20~70 | ||
| Storage temperature (℃) | -40~85 | ||
| Package type (mm) | LGX,Box, rack or customer specified | ||
| Package size (mm) | LGX:201x256x44 or 155x100x29 | ||
| Box:100x80x10 or 120x80x18 or 141x120x28 | |||
| Rack :1U: 484x260x44 or 2U: 482x260x88 | |||
Business advantage
One-stop FTTH solution with more than 10 years of experience in fiber optic communications
Technology
(1) Professionally engaged in high-precision packaging production of optical devices for 15 years
(2) 15 years of the technical team
(3) Have their own core technology
Research and development
(1) Adhere to 5% of annual sales as technology research and innovation expenses
(2) Independent development chip
Market
(1) Mainly in the middle and high-end market (Europe and America, Japan, South Korea, Southeast Asia, Russia)
Shipment:
(1) Logistics: Cooperate with well-known express delivery companies such as Korea ADC, Dongzhou, Hangxin, etc.
(2) Fast shipping: proofing 1-3 days, delivery time 15-20 days, can provide free stock samples, or free proofing.
|
|
