| Brand Name: | Seacent |

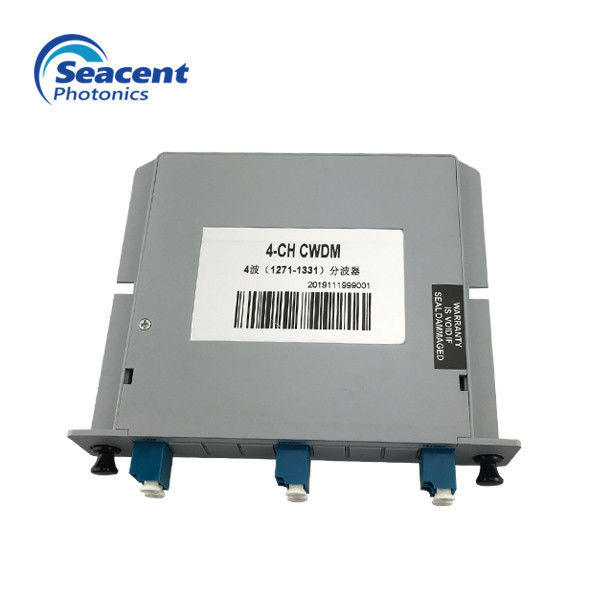

| Model Number: | CWDM insert type 1 * 4 mux demux |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T |
| Parameter | 4CH | 6CH | 8CH |
| Center wavelength (nm) | ITU or ITU+1(Customizable starting wavelength) | ||
| Product Features | Mux orDemux or Mux&Demux | ||
| Channel wavelength (nm) | 1270~1610 | ||
| Center wavelength accuracy (nm) | ±0.5 | ||
| Channel pitch (nm) | 20 | ||
| Channel passband (@ -0.5db bandwidth (nm) | >14 | ||
| Insertion loss (dB) | ≤1.4 | ≤2.6 | ≤3.0 |
| Channel uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 |
| Channel ripple (dB) | 0.3 | ||
| Isolation (dB) adjacent | >30 | >30 | >30 |
| Isolation (dB) Non-adjacent | >40 | >40 | >40 |
| Polarization-dependent loss (dB) | <0.2 | ||
| Polarization Mode Dispersion (PS) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return loss (dB) | >45 | ||
| Connector type | LC/APCOr customer specified | ||
| Maximum power (mW) | 500 | ||
| Working temperature (℃) | -20~70 | ||
| Storage temperature (℃) | -40~85 | ||
| Package type (mm) | LGX,Box, rack or customer specified | ||
| Package size (mm) | LGX:201x256x44 or 155x100x29 | ||
| Box:100x80x10 or 120x80x18 or 141x120x28 | |||
| Rack :1U: 484x260x44 or 2U: 482x260x88 | |||
Business advantage
Product:
(1) High reliability, high stability, small size, low insertion loss
(2) 1*N 2*N multiple channel forms
(3) 1260-1650nm full-band operation
(4) Industrial working environment: -40 ° C - + 85 ° C
(5) ISO9001-2015 quality system, Telcordia GR-1209-CORE, GR-1221-CORE standard certificate
(6) Customization: can be customized according to customer requirements
(7) Product process: industry leading
Service:
(1) Experience in serving large customers for more than 8 years
(2) Independently provide product solutions and packaging solutions for customers
(3) Have strong strategic partners
|
|
