| Brand Name: | Seacent |
| Model Number: | Simplex Single Mode |
| MOQ: | 1 piece |
| Price: | USD 0.57~0.85 per piece |
| Supply Ability: | 150,000 pieces |

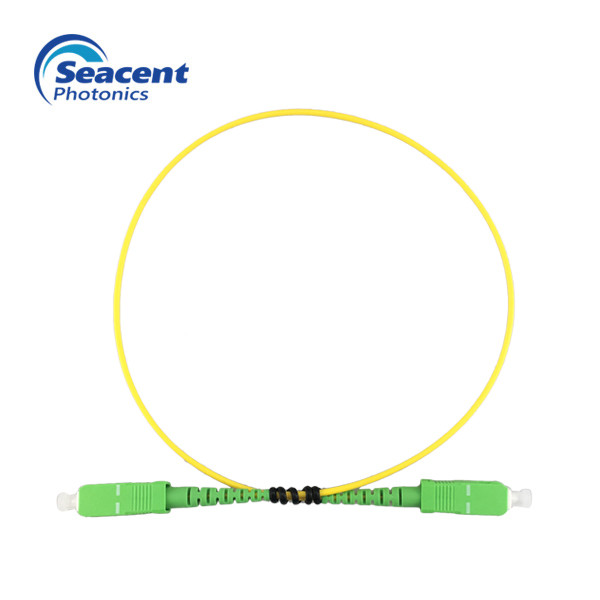

Simplex Single Mode APC Sc Sc Fiber Patch Cord 0.5m 1.0m 1.5m 2.0m Length
What is a patch cord:
Fiber Optic Patch Cord is very important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch cord series comes with a comprehensive collection of lengths and connectors to meet your demand for the deployment.
The fiber optic connector is divided into single-mode and multi-mode connectors. According to the structure of the connector, it can be divided into various customized models such as SC, FC, LC, and ST. The ST connector is usually used for the wiring device end, and the other connectors are the wiring environment. Link, the main material uses A-class ferrule, imported aramid, high tensile strength, large tensile strength, cable sheath is made of PVC low-smoke flawless environmentally friendly flame retardant material, high flame retardant fire resistance grade, in line with ROHS wire certification standards.
Features:
Applications:
Technical parameter:
| Connector Type | SC/UPC-SC/UPC |
| Model | Single mode |
| Fiber Count | Duplex |
Fiber type | G657A1 or customed |
Insertion loss(dB) | ≤0.3 |
Return loss(dB) | ≥55 |
Repeatability(dB) | ≤0.1 |
Interchangeability(dB) | ≤0.2 |
Number of plugs(frequency) | ≥1000 |
Tensile strength (N) | ≥70 |
Durability (dB) | ≤0.2 |
Working temperature (°C) | -40℃- 85℃ |
Storage temperature (°C) | -40℃- 85℃ |
Ferrule technical parameters:
description | Single mode | Multi mode |
length | (10.50±0.05)nm | (10.50±0.01)nm |
Outer diameter | (2.4990±0.005)nm | (2.4990±0.001)nm |
inside diameter | (0.125±0.001)nm | (0.126±0.129)nm |
Concentricity | ≤1.0 | ≤4.0 |
Ordering information:
Connector type | Casing color | Fiber type | Cable diameter | Fiber length | Cable type | Casing material |
1=FC/APC | 1=yellow | 1=SM9/125 G652D | 1=0.9mm | 0=0.5m | 1=Single core | 1=PVC |
Business advantage
Service:
(1) Experience in serving large customers for more than 8 years
(2) Independently provide product solutions and packaging solutions for customers
(3) Have strong strategic partners
|
|
