| Brand Name: | Seacent |
| Model Number: | multimode duplex |
| MOQ: | 1 piece |
| Price: | USD 0.57~0.85 per piece |
| Supply Ability: | 150,000 pieces |

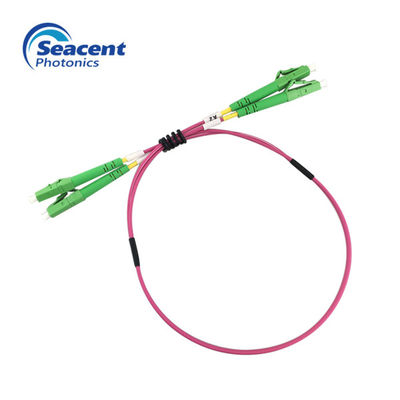

1.5m 3.0mm Fiber Optic Patch Cord LC LC Duplex Multimode , APC Polish
Fiber optic patch cord is constructed from a core with a high refractive index, surrounded by a coating with a low refractive index, that is strengthened by aramid yarns and surrounded by a protective jacket. Transparency of the core permits transmission of optic signals with little loss over great distances. The coating's low refractive index reflects light back into the core, minimizing signal loss. The protective aramid yarns and outer jacket minimizes physical damage to the core and coating.
Quick Details:
Features:
Applications:
Technical parameter:
| FC,SC,LC | ST,MU | MTRJ | ||||||||||||||||||||
| SM | MM | SM | MM | SM | MM | |||||||||||||||||
| parameter | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | ||||||||||
| Working wavelength(nm) | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | ||||||||||||||||
| Fiber type | G657A1 or customed | |||||||||||||||||||||
| Insertion loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ||||||||||
| Return loss(dB) | ≥55 | ≥60 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ||||||||||
| Repeatability(dB) | ≤0.1 | |||||||||||||||||||||
| Interchangeability(dB) | ≤0.2 | |||||||||||||||||||||
| Number of plugs(frequency) | ≥1000 | |||||||||||||||||||||
| Tensile strength (N) | ≥70 | |||||||||||||||||||||
| Durability (dB) | ≤0.2 | |||||||||||||||||||||
| Working temperature (°C) | -40℃- 85℃ | |||||||||||||||||||||
| Storage temperature (°C) | -40℃- 85℃ | |||||||||||||||||||||
Ferrule technical parameters:
| description | Single mode | Multi mode |
| length | (10.50±0.05)nm | (10.50±0.01)nm |
| Outer diameter | (2.4990±0.005)nm | (2.4990±0.001)nm |
| inside diameter | (0.125±0.001)nm | (0.126±0.129)nm |
| Concentricity | ≤1.0 | ≤4.0 |
Ordering Information:
|
|
|
|
|
|
|
|
Connector type |
Casing color |
Fiber type |
Cable diameter |
Fiber length |
Cable type | Casing material |
|
1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST 8=Customized |
1=yellow 2=Orange 3=Aqua blue S=Customized |
1=SM9/125 G652D 2=SM9/125 G657A 3=MM50/125 OM3 4=MM62.5/125 OM1 S=Customized |
1=0.9mm 2=2.0mm 3=3.0mm |
0=0.5m 1=1.0m 2=1.5m 3=2.0m S=Customized |
1=Single core 2=Double core 3=waterproof 4=Branch 5=With fiber 6=Bundle |
1=PVC 2=LSZH 3=OFNR |
Technology:
(1) Professionally engaged in high-precision packaging production of optical devices for 15 years
(2) 15 years of technical team
(3) Have their own core technology
About Us
Shenzhen Seacent Photonics Co.,Ltd. is an optical communication company established in 2011. It is headquartered in Shenzhen, China and has a subsidiary in Hunan, China. It currently employs about 400 people and has a site area of approximately 4,000 square meters. Focusing on high-speed optical communication for 10 years, we have been adhering to the concept of quality as the core and driven by technological innovation, and are committed to providing total solutions for data centers, enterprises and operators.
|
|
