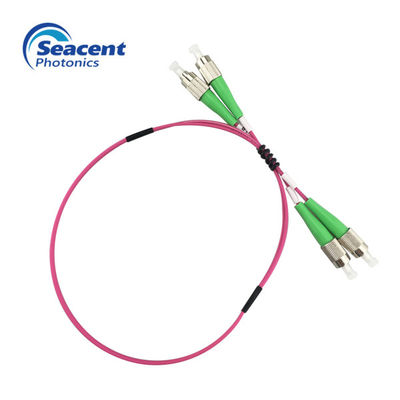

Multimode Duplex Fc To Fc Fiber Patch Cord MM50/125 OM3 , APC Polish

Multimode Duplex Fc To Fc Fiber Patch Cord MM50/125 OM3 , APC Polish

Brand Name: Seacent
Model Number: Multimode Duplex
MOQ: 1 piece
Price: USD 0.57~0.85 per piece
Supply Ability: 150,000 pieces
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001,ROHS
Product Name:
Fiber Patch Cord
Material:
PVC/LSZH
Connector Type:
ST SC LC FC
Length:
1m 2m 3m Or Customized
Fiber Count:
Simplex Or Duplex
Polish:
APC,UPC
Real Factory:
Yes
Application:
FTTH FTTB FTTX Network,For ODF Internal Link,For Room Equipment Internal Link
Supply Ability:
150,000 pieces
High Light:

fiber optic cable patch cord

,

fiber optic jumper cables

Product Description

Multimode Duplex Fc To Sc Fiber Patch Cord MM50/125 OM3 , APC Polish



Description:



The fiber optic connector is divided into single-mode and multi-mode connectors. According to the structure of the connector, it can be divided into various customized models such as SC, FC, LC, and ST. The ST connector is usually used for the wiring device end, and the other connectors are the wiring environment. Link, the main material uses A-class ferrule, imported aramid, high tensile strength, large tensile strength, cable sheath is made of PVC low-smoke flawless environmentally friendly flame retardant material, high flame retardant fire resistance grade, in line with ROHS wire certification standards.



Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.



Product features:

Low insertion loss

High return loss

High stability and reliability

Certified by Telcordia GR.1209 and GR.1221

Meet ROHS standards



Product application areas:

Fiber to the home

Passive optical network

Optical transmission system

Optical fiber sensing system

Test Equipment ; PON-FTTX network



Technical parameter:

  FC,SC,LC ST,MU MTRJ
  SM MM SM MM SM MM
parameter UPC APC UPC APC UPC APC UPC APC UPC APC UPC APC
Working wavelength(nm) 1310,1550 850,1300 1310,1550 850,1300 1310,1550 850,1300
Fiber type G657A1 or customed
Insertion loss(dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Return loss(dB) ≥55 ≥60 ≥35 ≥35 ≥50 ≥50 ≥35 ≥35 ≥50 ≥50 ≥35 ≥35
Repeatability(dB) ≤0.1
Interchangeability(dB) ≤0.2
Number of plugs(frequency) ≥1000
Tensile strength (N) ≥70
Durability (dB) ≤0.2
Working temperature (°C) -40℃- 85℃
Storage temperature (°C) -40℃- 85℃



Ferrule technical parameters:

description Single mode Multi mode
length (10.50±0.05)nm (10.50±0.01)nm
Outer diameter (2.4990±0.005)nm (2.4990±0.001)nm
inside diameter (0.125±0.001)nm (0.126±0.129)nm
Concentricity ≤1.0 ≤4.0



Ordering information:



Connector type Casing color Fiber type Cable diameter Fiber length Cable type Casing material

1=FC/APC

2=FC/UPC

3=SC/APC

4=SC/UPC

5=LC/APC

6=LC/UPC

7=ST

8=Customized

1=yellow

2=Orange

3=Aqua blue

S=Customized

1=SM9/125 G652D

2=SM9/125 G657A

3=MM50/125 OM3

4=MM62.5/125 OM1

S=Customized

1=0.9mm

2=2.0mm

3=3.0mm

0=0.5m

1=1.0m

2=1.5m

3=2.0m

S=Customized

1=Single core

2=Double core

3=waterproof

4=Branch

5=With fiber

6=Bundle

1=PVC

2=LSZH

3=OFNR
