| Brand Name: | Seacent |
| Model Number: | 6channels |
| MOQ: | 1 piece |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 100,000 pieces per month |

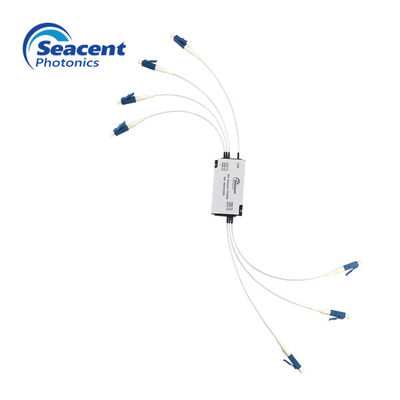

Fiber Optic Mini CWDM Mux , 4 Channel Multiplexer 1270-1330 nm Waveband
Description:
Seacent Photonics now offers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages. Its compact size and unique carrier tray set it apart, and can be installed in a variety of field situations.
Seacent Photonics compact CWDM Modules feature free-space structure, high optical performance, small-sized package, and extremely low insertion loss. With these features, they dramatically relax the optical power budgets for your applications, allow datacom or telecom network applications to use low-cost uncooled lasers, and function in small-sized packages. Available from 4 to 18 channel configurations, the CCWDM can meet the expansion needs of any network. The module also simplifies inventory management since the same component serves as both a Mux and a Demux and can be used in the head end for outside plant. Compact and easy to install, the versatile compact CWDM module provides a simple and low-cost method for expanding bandwidth and increasing revenue from existing optical fiber.
Specifications:
| Item | 4CH | 8CH | 18CH |
| Center wavelength (nm) | ITU or ITU+1(Customizable starting wavelength) | ||
| Product Features | Mux or Demux or Mux&Demux | ||
| Channel wavelength (nm) | 1270~1610 | ||
| Center wavelength accuracy (nm) | ±0.5 | ||
| Channel pitch (nm) | 20 | ||
| Insertion loss (dB) | ≤1.0 | ≤1.5 | ≤3.2 |
| Channel uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 |
| Isolation adjacent (dB) | >30 | >30 | >30 |
| Isolation Non-adjacent (dB) | >45 | >45 | >45 |
| Polarization-dependent loss (dB) | <0.2 | ||
| Polarization Mode Dispersion (PS) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return loss (dB) | >45 | ||
| Connector type | LC/APC or customer specified | ||
| Maximum power (mW) | 500 | ||
| Working temperature (℃) | -5~70 | ||
| Storage temperature (℃) | -40~85 | ||
| Package (mm) | 44x25x6 or customer specified | ||
Remark:The above parameters do not contain connectors.
Features:
Application:
Business advantage
Product:
(1) High reliability, high stability, small size, low insertion loss
(2) 1*N 2*N multiple channel forms
(3) 1260-1650nm full-band operation
(4) Industrial working environment: -40 ° C - + 85 ° C
(5) ISO9001-2015 quality system, Telcordia GR-1209-CORE, GR-1221-CORE standard certificate
(6) Customization: can be customized according to customer requirements
(7) Product process: industry leading
|
|
