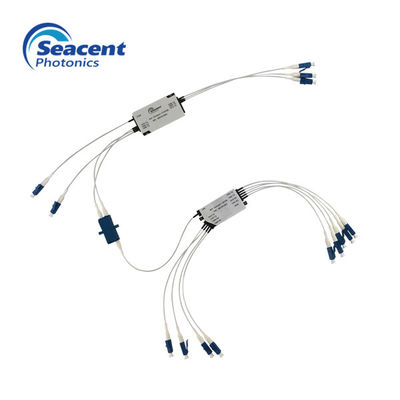

Ultra Small WDM Filter CWDM MUX DEMUX , Multi Channel Mux 1270~1610 Nm

Brand Name:	Seacent
Model Number:	4/8/18 channels
MOQ:	1 piece
Payment Terms:	L/C, T/T, D/P
Supply Ability:	100,000 pieces per month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO9001,ROHS

Type:

Wireless

Waveband:

1270~1610 Nm

Channel Bandwidth:

ITU±6.5 Nm

Connector Type:

LC/APCOr Customer Specified

Center Wavelength Accuracy:

±0.5 Nm

Operating Temperature:

-5~70 ℃

Package Size:

44x25x6 Mm Or Customer Specified

Name:

Compact CWDM/Mini CWDM/Ccwdm

Supply Ability:

100,000 pieces per month

Highlight:

compact cwdm

compact coarse wavelength division multiplexer

Product Description

Ultra Small WDM Filter CWDM MUX DEMUX , Multi Channel Mux 1270~1610 Nm

Description:

Coarse Wavelength Division Multiplexing (CWDM) is an excellent choice for increasing bandwidth capacity while keeping costs down.

Our CWDM MUX DEMUX are perfectly suited to transport PDH, SDH / SONET, ETHERNET services over WWDM, CWDM and DWDM in optical metro edge and access networks.

Features:

Low Insertion Loss
High isolation
Low Polarization Dependent Loss
Compact design
Good channel-to-channel uniformity
Wide operating wavelength range
High reliability and high stability
Telcordia GR-1209-CORE-2001 compliant
Telcordia GR-1221-CORE-1999 compliant
RoHS-6 compliant (lead free)

Application:

CWDM Channels Add/Drop
CWDM
CATV Fiber Optical Links
Accessing LAN Networks
Short-Distance Communications

Specifications:

Item	4CH	8CH	18CH
Center wavelength (nm)	ITU or ITU+1(Customizable starting wavelength)
Product Features	Mux or Demux or Mux&Demux
Channel wavelength (nm)	1270~1610
Center wavelength accuracy (nm)	±0.5
Channel pitch (nm)	20
Insertion loss (dB)	≤1.0	≤1.5	≤3.2
Channel uniformity (dB)	≤0.5	≤0.5	≤0.5
Isolation adjacent (dB)	>30	>30	>30
Isolation Non-adjacent (dB)	>45	>45	>45
Polarization-dependent loss (dB)	<0.2
Polarization Mode Dispersion (PS)	<0.1
Directivity (dB)	>50
Return loss (dB)	>45
Connector type	LC/APC or customer specified
Maximum power (mW)	500
Working temperature (℃)	-5~70
Storage temperature (℃)	-40~85
Package (mm)	44x25x6 or customer specified

Remark:The above parameters do not contain connectors.

Business advantage

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners
