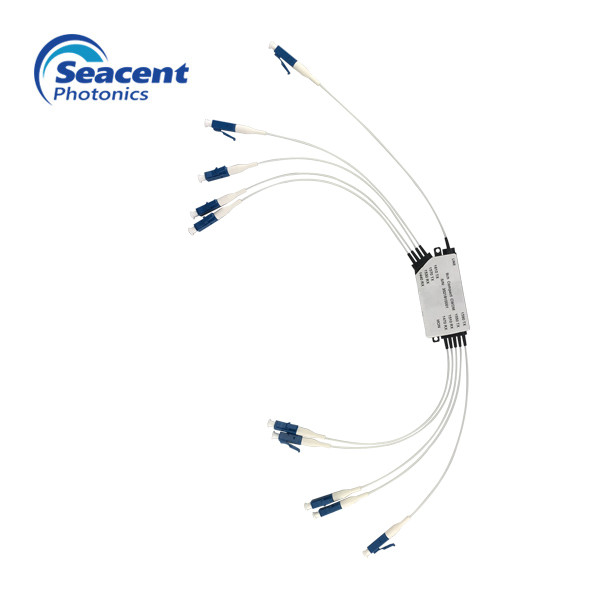

8 Channel Mini CCWDM Module With Low Polarization Dependent Loss

8 Channel Mini CCWDM Module With Low Polarization Dependent Loss

Brand Name: Seacent
Model Number: 8 channels
MOQ: 1 piece
Payment Terms: L/C, T/T, D/P
Supply Ability: 100,000 pieces per month
Detail Information
Place of Origin:
Guangdong, China
Certification:
ISO9001,ROHS
Waveband:
1270-1330 Nm
Channel Bandwidth:
ITU±6.5 Nm
Connector Type:
LC/APCOr Customer Specified
Center Wavelength Accuracy:
±0.5 Nm
Operating Temperature:
-5~70 ℃
Package Size:
44x25x6 Mm Or Customer Specified
Supply Ability:
100,000 pieces per month
High Light:

compact cwdm

,

compact coarse wavelength division multiplexer

Product Description

4 Channel Mini CCWDM Module With Low Polarization Dependent Loss





Specifications:



Item 4CH 8CH 18CH
Center wavelength (nm) ITU or ITU+1(Customizable starting wavelength)
Product Features Mux or Demux or Mux&Demux
Channel wavelength (nm) 1270~1610
Center wavelength accuracy (nm) ±0.5
Channel pitch (nm) 20
Insertion loss (dB) ≤1.0 ≤1.5 ≤3.2
Channel uniformity (dB) ≤0.5 ≤0.5 ≤0.5
Isolation adjacent  (dB) >30 >30 >30
Isolation Non-adjacent  (dB) >45 >45 >45
Polarization-dependent loss (dB) <0.2
Polarization Mode Dispersion (PS) <0.1
Directivity (dB) >50
Return loss (dB) >45
Connector type LC/APC or customer specified
Maximum power (mW) 500
Working temperature (℃) -5~70
Storage temperature (℃) -40~85
Package  (mm) 44x25x6 or customer specified

Remark:The above parameters do not contain connectors.



Description:



Seacent Photonics compact CWDM Modules feature free-space structure, high optical performance, small-sized package, and extremely low insertion loss. With these features, they dramatically relax the optical power budgets for your applications, allow datacom or telecom network applications to use low-cost uncooled lasers, and function in small-sized packages. Available from 4 to 18 channel configurations, the CCWDM can meet the expansion needs of any network. The module also simplifies inventory management since the same component serves as both a Mux and a Demux and can be used in the head end for outside plant. Compact and easy to install, the versatile compact CWDM module provides a simple and low-cost method for expanding bandwidth and increasing revenue from existing optical fiber.





Features:

  • Low Insertion Loss
  • High isolation
  • Low Polarization Dependent Loss
  • Compact design
  • Good channel-to-channel uniformity
  • Wide operating wavelength range
  • High reliability and high stability
  • Telcordia GR-1209-CORE-2001 compliant
  • Telcordia GR-1221-CORE-1999 compliant
  • RoHS-6 compliant (lead free)



Application:

  • CWDM system
  • PON network
  • Cable chain

Business advantage

Service:

(1) Experience in serving large customers for more than 8 years

(2) Independently provide product solutions and packaging solutions for customers

(3) Have strong strategic partners
