| Brand Name: | Seacent |
| Model Number: | pigtail 1CH |
| MOQ: | 10pcs |
| Payment Terms: | L/C, T/T |

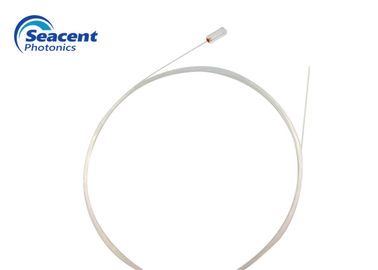

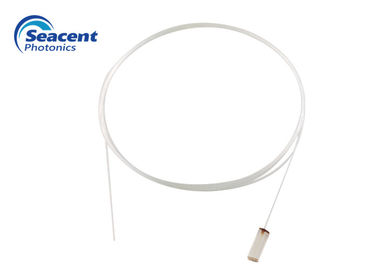

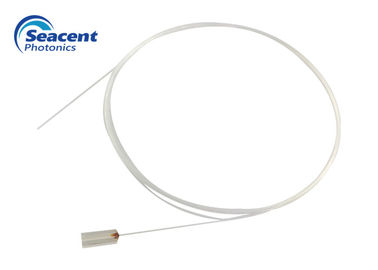

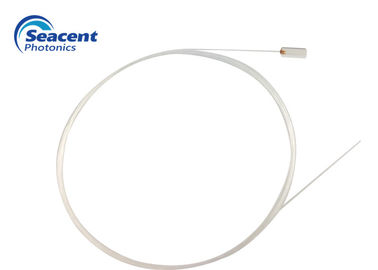

Fiber array pigtail 1CH G657A1 0.5M length
Description:
The fiber array is a bare fiber that removes the fiber coating.A portion is placed in the V-groove and is pressurized by the adhesive by the pressurization member.
We provide unique assembly/cutting/polish processes to get the best accuracy of fiber core position with the perfect Polishing surface. Fiber array is an essential component used in different applications to connect the optical fiber to its waveguide.
Features:
Applications:
Specification:
| fiber length | from few centimeters to several hundred meters |
| fiber type | PMF,MMF,SMF or custom |
| polishing angle | 0+/-0.5；8+/-0.5；custom |
| fiber position accuracy | +/-1um(x and axis) |
| connectors | FC,LC,SC,ST,SMA,MU,E2000,other |
| fiber spacing | upon request |
| fiber quantity | upon request |
V-groove base plate dimension table:
| L | W | H | X | Y | comprehensive error | ||||||
| type | size | common difference | size | common difference | size | common difference | size | common difference | core height difference | R=√ x2+y2 | |
| 2CH 250 | 10 | ±0.3 | 2.5 | ±0.05 | 2.5 | ±0.05 | 0.25 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 4CH 250 | 10 | ±0.3 | 2.5 | ±0.05 | 2.5 | ±0.05 | 0.25 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 8CH 250 | 10 | ±0.3 | 3.5 | ±0.05 | 2.5 | ±0.05 | 0.25 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 8CH 127 | 10 | ±0.3 | 2.5 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 16CH 127 | 10 | ±0.3 | 3.5 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 32CH 127 | 10 | ±0.3 | 5.7 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 48CH 127 | 12 | ±0.3 | 7.8 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 64CH 127 | 12 | ±0.3 | 9.8 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 96CH 127 | 12 | ±0.3 | 16 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
| 128CH 127 | 12 | ±0.3 | 20 | ±0.05 | 2.5 | ±0.05 | 0.127 | ≤0.0005 | ≤0.001 | ＜0.1 | |
Ordering Information:
|
Product number |
Fiber type |
Fiber length |
|
01=1CH 02=2CH 03=4CH 04=8CH 05=12CH 06=16CH 07=24CH 08=32CH 09=48CH 10=64CH 11=96CH |
1=G657A1 2= G657A2 3=G652D 4=G652B |
0=0.5M 1=1.0M 2=1.5M 3=2.0M 4=2.5M |
|
|
