Optical Fiber Array
>
High Return Loss Single Mode Fiber Array 16 Channel For Splitters

High Return Loss Single Mode Fiber Array 16 Channel For Splitters

Brand Name: Seacent
Model Number: Fiber Array-16CH
MOQ: 10pcs
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
Guangdong,China
Certification:
ISO9001,ROHS
Color:
Blue, Orange, Green, Brown, White, Red, Black, Yellow, Purple, Pink, Water Green
Material:
Quartz Glass, Borosilicate, Silicon
Fiber Type:
2.0mm,G657A Or G652,0.9mm,SMF-28e,PM980
Connector:
SC,FC,LC,ST,LC Fiber Patch Cord And So On
Ferrule Polish:
PC,UPC,APC
Packing:
Inner Box And Export Carton,Polybag
High Light:

fiber optic array

,

fiber array

Product Description

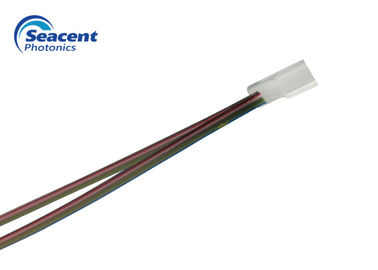

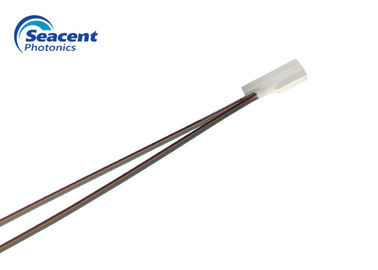

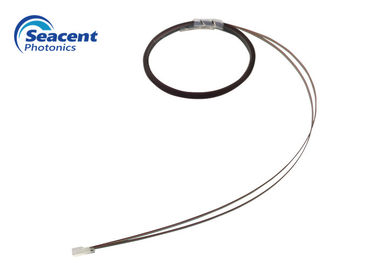

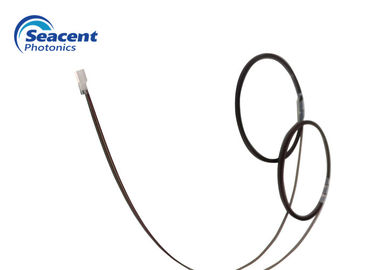

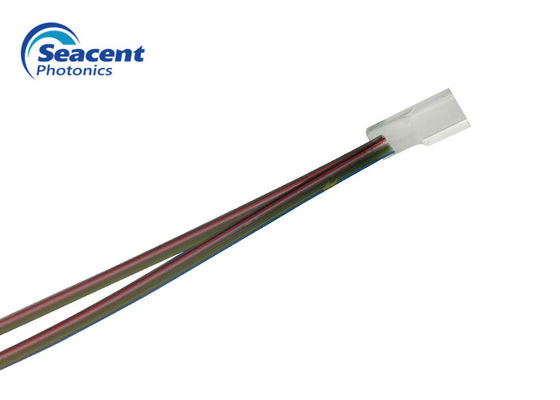

Fiber array 16-channel single mode in stock, polishing angle

Description:

Fiber array is an essential component used in the WDM systems to connect optical fiber and AWG chip

Our precision processing technology, which we have developed for years, provides high fidelity, quality, and core pitch accuracy

High-quality Seikoh-Giken connectors are used at the end of fibers


Features:

Low Insertion Loss

High Return Loss

Wide Operation Temperature

High Stability and Reliability

High accuracy of fiber core position


Applications:

PLC Devices

Splitters

AWG

Coupler

Active/passive array fiber optic device


Specification:
Item Parameter
Material Quartz glass, borosilicate, silicon
Number of channels 1CH ~ 128CH
Core distance/tolerance(μm) 250, 127 / 0.7
Fiber length (m) 2.0±0.1
Polishing angle ( ° ) 0,+8, -8 (±0.3)
Polishing flatness ﹤ 5 fringes@633nm
Fiber type SMF-28e or SMF-28e XB
Operating temperature(℃) -40~+85



V-groove base plate dimension table:

  L W H X Y comprehensive error
type size common difference size common difference size common difference size common difference core height difference R=√ x2+y2
2CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
4CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
8CH 250 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
8CH 127 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
16CH 127 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
32CH 127 10 ±0.3 5.7 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
48CH 127 12 ±0.3 7.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
64CH 127 12 ±0.3 9.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
96CH 127 12 ±0.3 16 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
128CH 127 12 ±0.3 20 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 0.1



Ordering Information:

Product number Fiber type Fiber length
01=1CH
02=2CH
03=4CH
04=8CH
05=12CH
06=16CH
07=24CH
08=32CH
09=48CH
10=64CH
11=96CH
12=128CH
1=G657A1
2= G657A2
3=G652D
4=G652B
0=0.5M
1=1.0M
2=1.5M
3=2.0M
4=2.5M
S=Customized
