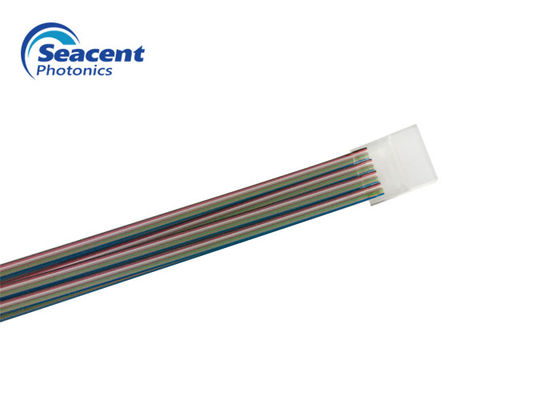

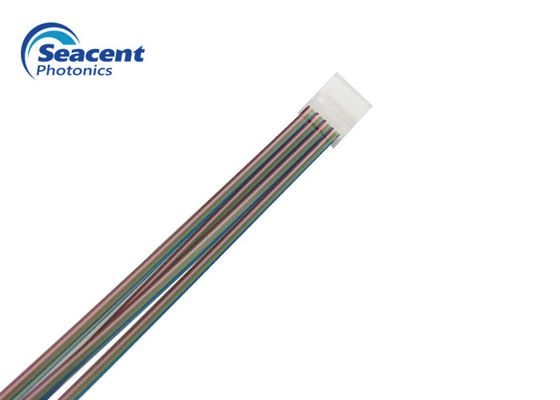

Low Insertion Loss Optical Fiber Array With High Precision Core Spacing

Minimum Order Quantity : 10pcs Delivery Time : 5-8 work days
Payment Terms : L/C, T/T
Place of Origin: Guangdong,China Brand Name: Seacent
Certification: ISO9001,ROHS Model Number: Fiber Array-64CH

Detail Information

Color: Blue, Orange, Green, Brown, White, Red, Black, Yellow, Purple, Pink, Water Green Material: Quartz Glass, Borosilicate, Silicon
Polishing Angle ( ° ): 0,+8, -8 (±0.3) Connector: SC,FC,LC,ST,LC Fiber Patch Cord And So On
Ferrule Polish: PC,UPC,APC Packing: Inner Box And Export Carton,Polybag
High Light:

plc fiber array

,

fiber array

Product Description

Fiber array 64 CH 3 type material UPC/APC Polishing angle

Descriptions:

Fiber Arrays, as one of the key parts for PLC Splitter, are fabricated with high precise V-Groove substrate to locate the fiber core position and accurate polish surface, offer low insertion loss and high return loss.

The fiber array is a bare fiber that removes the fiber coating.A portion is placed in the V-groove and is pressurized by the adhesive by the pressurization member.





Features:

Low insertion loss

High stability and reliability

Good channel uniformity

High precision core spacing

Meet ROHS standards



Specifications:

Item Parameter
Number of channels 1CH ~ 128CH
Material Quartz glass, borosilicate, silicon
Core distance/tolerance(μm) 250, 127 / 0.7
Fiber length (m) 2.0±0.1
Polishing angle ( ° ) 0,+8, -8 (±0.3)
Polishing flatness ﹤ 5 fringes@633nm
Fiber type SMF-28e or SMF-28e XB
Operating temperature(℃) -40~85



V-groove base plate dimension table:

  L W H X Y comprehensive error
type size common difference size common difference size common difference size common difference core height difference R=√ x2+y2
2CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
4CH 250 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
8CH 250 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.25 ≤0.0005 ≤0.001 <0.1
8CH 127 10 ±0.3 2.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
16CH 127 10 ±0.3 3.5 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
32CH 127 10 ±0.3 5.7 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
48CH 127 12 ±0.3 7.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
64CH 127 12 ±0.3 9.8 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
96CH 127 12 ±0.3 16 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 <0.1
128CH 127 12 ±0.3 20 ±0.05 2.5 ±0.05 0.127 ≤0.0005 ≤0.001 0.1

Applications:

Active/passive array fiber optic device

Arrayed waveguide grating

Planar optical waveguide

Multi-channel optical module



Ordering Information:
Product number Fiber type Fiber length
01=1CH
02=2CH
03=4CH
04=8CH
05=12CH
06=16CH
07=24CH
08=32CH
09=48CH
10=64CH
11=96CH
12=128CH
1=G657A1
2= G657A2
3=G652D
4=G652B
0=0.5M
1=1.0M
2=1.5M
3=2.0M
4=2.5M
S=Customized
